Basic Info.
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Depth of Throat: 320mm
Distance Between Housings: 2600mm
Showroom Location
Egypt, Canada, UAE, Australia, None
Warranty of Core Components
2 Years
Video Outgoing-Inspection
Provided
Raw Material
Sheet Metal & Steel Plate
Max Bending Width:3200mm
Motor Power (Kw):7.5
Marketing Type
New Product 2024
Key Selling Points
Automatic
Max Opening Height:380mm
Slider Stroke:120mm
Model:Wc67K-100t/3200
Bending Pressure:1000kN
Transport Package
Plywood Box
Production Capacity
5000pieces/Year
Product Description
Product Overview
-------------------------------------------------------------------------------------------------------------------

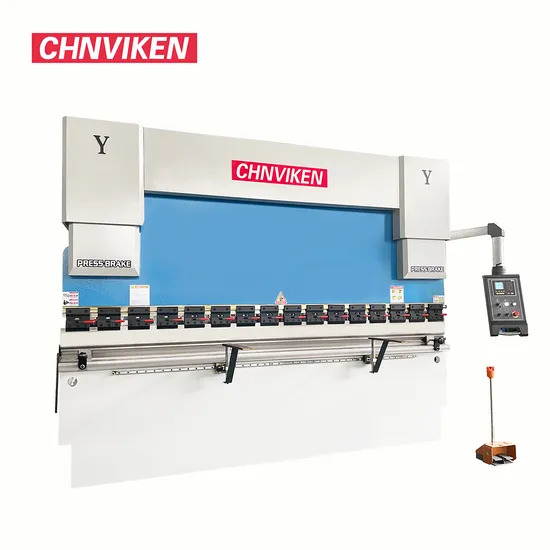

High-Precision NC Press Brake for Various Metalworking Needs This high-precision, reliable NC press brake is designed to meet various metalworking needs. It features a streamlined design, robotic welding, and stress relief annealing to ensure high precision and long service life.
Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
Column Distance(mm) | 2650 | 2610 | 3100 | 2610 | 3100 | 2600 | 3050 |
Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
---------------------------------------------------------------------------------------------------
1. Usage and maintenance:Re: NC hydraulic press brake is totally designed and manufacture by Viken, for usage and maintenance.2. What's the shipping cost from China to your country?Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address withpostcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.3. Payment terms, MOQ, warranty, FOB.Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.Minimum order quantity: 1 set.Warranty: 3 years.FOB: Nanjing / Shanghai/or others port in CHINA.4. What's the package?Re:Fumigation-free plywood case or without package.5. What about commissioning service?Re:We can offer commissioning service, the buyer need to afford air tickets.6. What's policy for guarantee and broken parts?Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.
>>
