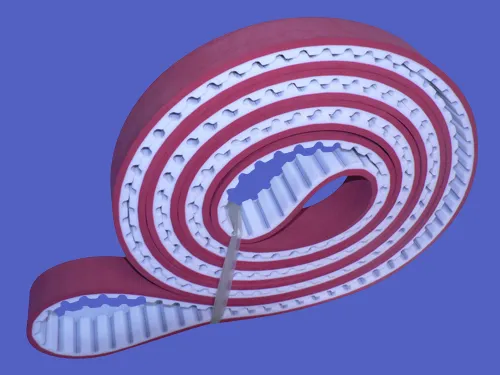

At20 Timing Belt for Ceramic Polish Line Machine

Product Description

(1)Specification: XL, L, H, XH, T5, T10, T20, AT5, AT10, AT20, 3M, 8M, 14M, S5M;
(2)It could be reinforced by steel wire core or kevlar core at option;
(3)All models teeth could be covered with green fabric and back covered with anti-rust latex. All items could be jointed endless.
(4)Made of thermoplastic polyurethane materials with high wear resistance;
(5)In the high-load transmission is still keeping good loading capacity;
(6)Opening belt could be continuous length, the middle and the sides are with parallel wire core;
(7)Aging resistance, water proof, working temperature -30 to 80, can endure maximum 110 in short time, can be combined with other thermoplastic materials
(8)Hard to be hydrolyzed, anti- acid, UV resistant, not aging, highly resistant to oil, anti-grease.
Application
Widely used in computer embroidery machine, beverage machinery, color glass and ceramics production and processing machinery, textile machinery and equipment industries. Its framework is with Stainless steel cord or copper wire reinforced and with high strength, low extension, good bend performance and the good characteristics of the load force.

	WIDTH(mm)	Maximum Traction Force -OPEN(N)	Maximum Traction Force -Jointed Belt (N)	Maximum Traction Force -Endless Belt (N)	Belts Weight (kg/m)
	25	6020	3010	5620	0.270
	32	7400	3700	7150	0.350
	50	12040	6020	11250	0.550
	75	18050	9025	16100	0.800
	100	25000	12500	22500	1.100
	150	36400	18050	33200	1.600
	200	49100	24550		2.13
	Width Tolerance (mm)		±1.0
	Thickness Tolerance (mm)		±0.45

---
