Pneumatic Actuator Double / Single Acting Water Air Oil Gas Liquid Solenoid 3 Way Control Stainless Steel 316 Thread Ball Valve

Product Description

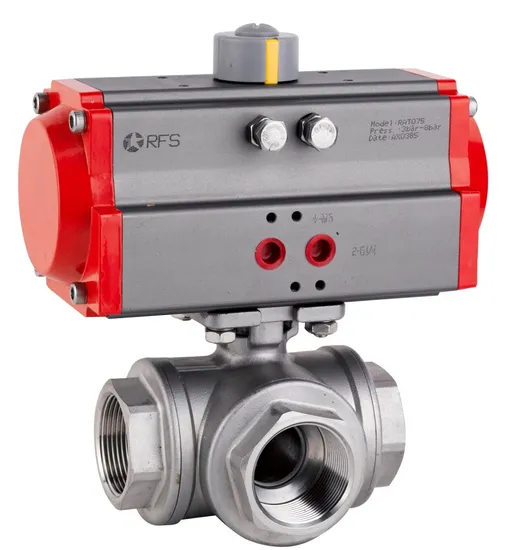

Ball valve with Pneumatic Actuator - Three piece type

Data:1.Screw Type: NPT.BSPT.BSP,ISO-228 Class A Thread2.Temperature range : PTFE:-20~180 TMF :-50~270 RPTFE:-35~2103.Body Material :WCB,CF8,CF8M,TI,NI4.Suitable Medium:Water.oil,air and some corrosive liquid5.Nominal pressure :10000PSI (PN63 )For 1/2'' -4''6.Anti roll stem7.Locking device
Ordering Code
Overall Dimension

Mode	Inch	DN	d	L	h	b	ISO5211	Actuator
RBVP14-15	1/2''	15	12	72	8.5	9	F03/F04	RAT052DA
RBVP14-20	3/4''	20	15	82	9.5	9	F03/F04	RAT052DA
RBVP14-25	1''	25	18	90	11	11	F04/F05	RAT052DA
RBVP14-32	1-1/4''	32	25	128	12	11	F04/F05	RAT063DA
RBVP14-40	1-1/2''	40	32	137	16.5	14	F05/F07	RAT075DA
RBVP14-50	2''	50	38	154	16.5	14	F05/F07	RAT083DA
RBVP14-65	2-1/2''	65	48	185	20	17	F07/F10	RAT092DA
RBVP14-80	3''	80	55	212	20	17	F07/F10	RAT105DA
RBVP14-100	4''	100	74	254	22.5	19	F07/F10	RAT125DA

SPECIFICATION
Body meterial: CF8M,CF8,CF3M
Additive: PTFE PPL flexible graphite FEATURES
1. Unique design and beautiful appearance
2. High platform structure and connection to ISO5211, making installation of electric/pneumatic actuator
more professional.
3. Valve body is overlaid with reinforced bar, it can be permanently used in caustic media ,keep itself from
cracking and avoid the failure of parts of valve during installtion.
4. Grinding process of valve stem to reduce the moment of electric/pneumatic valve during assembly and
make it runmore flexible.
5. The body of carbon steel ball valve is phosphate coated, no fade ,rustless , durable and beautiful. Related Products
Company information
Xingyu Electron(Ningbo)Co.,Ltd. is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing, marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.
Brief Introduction:
--Approx 30 years' experience in manufacturing solenoid coils;
--Started to make solenoid valves & pneumatic actuators since 2004;
--ISO 9001 and IATF16949 certificated company;
--Main products: pneumatic actuator, Angle seat valves, Solenoid valves, solenoid coils,
Digital pressure switch, Vacuum generator, E/P regulator;
--Application: Pneumatic & Hydraulic industries, fluid control system,
air and water treatment system, Automatic industry, etc;
FAQ
Q:Are you a trading company or a factory?
A: We are a factory, manufacturer solenoid coils since year 1990.
Q:After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty ?
A: Normally it is guaranteed for 12 months since dispatching from factory
Q: Can you customized the products?
A: Yes, we have professional R&D team, we supply customized products to customers

---
