Automatic Feed Drilling Machine Arm Radial Drilling Machine Z3040

US$3,600.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z3035X10

Structure

Radial Drilling Machine

Layout

Vertical

Controlling Mode

Artificial

Number of Shaft

None

Hole Diameter

50-100mm

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Product Name

Radial Drilling Machine

Max Drill Capacity

400mm

Spindle to Column

1000mm

Spindle Travel

270mm

Spindle Taper

Mt4

Spindle Speed

46-220rpm

Column Diameter

220mm

Spindle Feed

0.10 - 0.25mm/R

Main Motor

1.5/2.2kw

Lifting Motor

0.55kw

Weight

1300kg

Dimension

1650X780X2150

Transport Package

Wood Case

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

China, Shandong

HS Code

84592900

Production Capacity

100sets/Month

Product Description

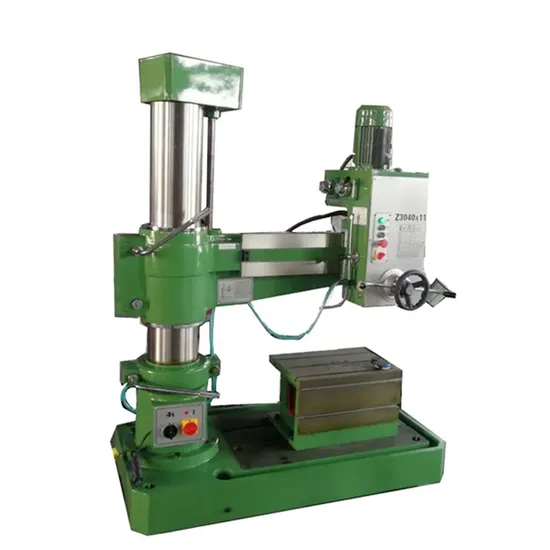

Automatic feed drilling machine Arm Radial Drilling Machine Z3040

Features:
Key precisely machined parts precision machining
Flexible reliable; Perfect feature.
High precision, High strength.
Economical cutting and Long life.
Functions: Drilling, counter boring, reaming, boring, spotting, tapping.
• Mechanical transmission • Mechanical clamping • Mechanical changing speed • Automatic take off and land • Automatic feed with 3 steps

Model	Z3032×10	Z3040×10	Z3040×11	Z3040×13	Z3045×14	Z3050×16
Max drilling capacity(MM)	32	40	40	40	45	50
Distance from spindle center to column(MM)	max:980	max:900	max:1000	max:1200	max: 1330	max: 1500
Distance from spindle center to column(MM)	min:220	min:300	min: 300	min:300	min: 360	min: 350
Distance from spindle nose to base(MM)	max:1000	max:1050	max:1050	max:1100	max:1100	max:1100
Distance from spindle nose to base(MM)	min:260	min:60	min:150	min:230	min:230	min:350
Spindle travel(MM)	120	270	270	270	270	220
Lifting speed	1.3
Spindle taper	MT4	MT4	MT4	MT4	MT4	MT5
Spindle speed(R/MIN)	6 steps	12 steps	12 steps	12 steps	12 steps	6 steps
Spindle speed(R/MIN)	108-1000	46---1220	46---1220	46---1220	28---1220	76-1100
Column diameter(MM)	180	200	220	240	280	280
Spindle feed		3steps
(MM/R)		0.10 - 0.25	0.10 - 0.25	0.10 - 0.25	0.10 -0.25	0.10-0.56
max spindle torque (N)			6300
Main motor(KW)	1.5/2.2	1.5/2.2	1.5/2.2	1.5/2.2	3	4
Lifting motor(KW)	0.75	0.75	0.55	1.1	1.1	0.75
weight(KG)	650	1100	1300	1500	1900	2000
dimension(mm)	1400x680x2100	1500x750x2150	1650x780x2150	1830x830x2250	2030x880x2300	2200x900x2100

With standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts.
Optional accessories:
Quick instead chuck, Tapping chuck, Grease gun.
