Double Masts Aluminium Lift for Aerial Work for 6 M

Product Description

Company introduction:
Boonai Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial work
platform, providing package service for design, production, sales and after-sales.
There is an experienced team that takes care of every process for design, production and quality
control and dedicated to provents with excellent work.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable
brand of Boonai by following the steps of the giants for the innovation of products and the
improvement of process and pursuing the perfection on every detail.
Main products are as follows: masts aerial work platform, scissor lift, fixed lift table, car lift and
material picker as well as electrical aerial work platform, with a wide application for the fields as
machinery, military, aviation and logistics etc.
Product introduction:

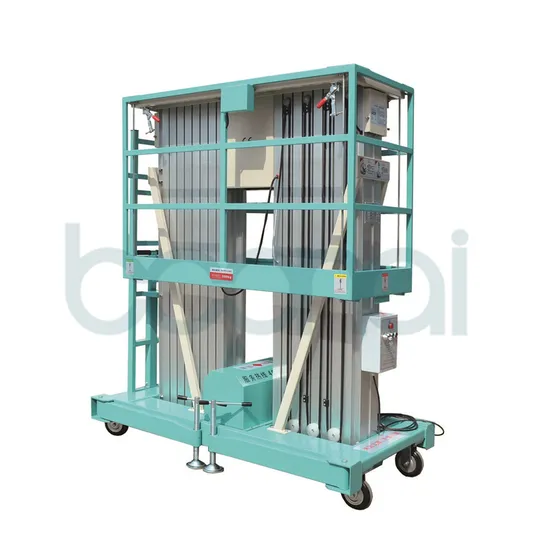

This Double Mast Aluminium Alloy Aerial work platform is the most ideal equipment for aerial work to replace ladder
or rigger, with high efficiency and more security.
This Double Mast Aluminium Alloy Aerial work platform allow two passengers, small footprint, less weight, easily
moved, able to access to limited passageway.
Double Mast Aluminium Lift Table from Suzhou Wangting is equiped with:
1.Most rigid aluminium alloy profile
2.Auxiliary platform lowering
3.Multi-guide pulley on mast
4.Durable base system
5.Chassis with level guage
6.Easily rolls through a narrow space
7.Emergency stop button
8.Over load protection
9.Built-in pressure release valve
10.Dual activated up/down switch
11.Locking Key Switch
12.Optional extended platform
13.Entry ladder

Model	GTWY6-200	GTWY8-200	GTWY9-200	GTWY10-200	GTWY12-200A	GTWY12-200B
Safe working load (kg)	300	200	200	200	200	200
Number of passengers	2	2	2	2	2	2
Max height of platform (m)	6	8	9	10	12	12
Max working height (m)	7.7	9.7	10.7	11.7	13.7	13.7
Overall size (L*W*H) (m)	1.38*0.85*2.00	1.38*0.85*2.00	1.58*0.95*2.00	1.58*0.95*2.00	1.62*0.95*2.25	1.68*0.95*2.00
Extended outrigger (L*W)(m)	1.85*1.78	1.85*1.78	2.15*2.00	2.15*1.90	2.21*2.04	2.30*2.09
Size of platform (L*W)(m)	1.18*0.62	1.18*0.62	1.38*0.62	1.38*0.62	1.38*0.62	1.48*0.62
Lifting motor
AC	220V/1.1KW	220V/1.1KW	220V/1.1KW	220V/1.1KW	220V/1.1KW	220V/1.1KW
DC (optional)	24V/0.8KW	24V/0.8KW	24V/0.8KW	24V/0.8KW	24V/0.8KW	24V/0.8KW
Accumulator	2*12V/80Ah	2*12V/80Ah	2*12V/80Ah	2*12V/80Ah	2*12V/80Ah	2*12V/80Ah
Charger	24V/10A	24V/10A	24V/10A	24V/10A	24V/10A	24V/10A
Wheel
Front wheel (in)	6	6	6	6	6	6
Rear wheel (in)	6	6	6	6	6	6
Overall weight (kg)
for AC mode	380	480	548	610	650	650
for DC mode	425	525	593	665	700	700

Our Services
1.The Hydraulic Scissor Lifting Equipment lifting table will be recommended to you once we got your requirement.
2.Shipment can be arranged from our port to your destination port.
3.User-friendly English manual for machine installation using and maintenance.
4.Supply 24-hours technical assistance by email, telephone or other communication online.
5.Customization is available
Warranty
Bond Nai assure customers: all products are no process or material defects, defects such as the company strictly in
accordance with the requirements of national quality guarantees:
1.Return within ten days
A, customers receive products do not conform to the requirements of the order of the rules, can't normal use.
B, the product defects cannot be used properly and beyond repair.
2.The replacement one months
A, customers receive products not in conformity with order product model.
B, in the process of the delivery of the goods transportation product defects, can't repair.
3.One year repair kit
Within one year from the date of product delivery, under normal use, due to the quality of the products (such as
improper use artificial reason does not belong to the warranty scope) caused by equipment failure, free warranty.
Besides the above guarantee bond Nai haven't made any other guarantee, due to the directory product misuse,
incorrect or improper application and directory defects occurring in the course of claim for compensation, Boonai does
not undertake any responsibility.

Should you need any information about our products and company, please feel free to contact us.

---
