Refractory mixer Counter Current Planetary Concrete Mixer Price for Sale

Product Description

Refractory mixer Counter Current Planetary Concrete Mixer Machine Price for Sale Product Description

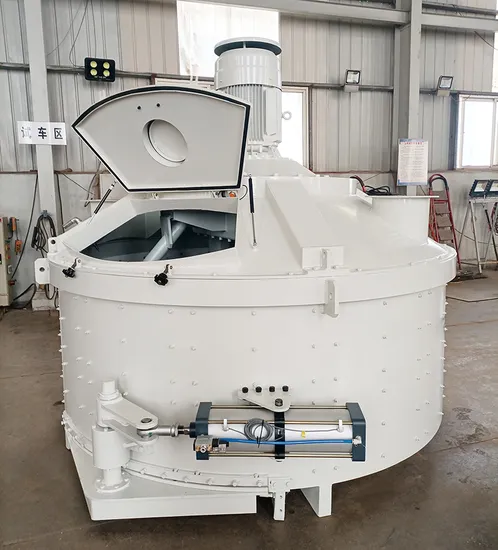

LCPM counter-current planetary mixer can mix all kinds of high-quality and high-performance concrete, which can reach homogenous mixing in the shortest time. It can also be widely used for glass, ceramics, refractories, fertilizer, concrete, etc
Can be customized according to your requirements.
Concrete Mixer Pump
Helpful Links
To browse more products, please click here
For our catalogs, please click here
For instant communication, please click here Our Advantages
Counter-current Gearing System
The rotation direction of mixing stars is reversed with the revolution direction, and each mixing star's direction is also different. The circulation movement and convective movement make the material severely mix and achieve uniform distribution.
Convection Mixing Device
High mixing efficiency, and low energy consumption.
Compared with traditional planetary mixers, the mixing time of LCMP could be reduced by 15~20%.
The no-load current and load current with the same material can be 15~20% lower Product Parameters
Color and capacity can be customized, welcome to inquire!

Item	LCPM50	LCPM100	LCPM150	LCPM250	LCPM330	LCPM500
Feeding Volume (L)	75	150	225	375	500	750
Feeding Capacity (Kg)	120	240	360	600	790	1200
Output Volume (L)	50	100	150	250	330	500
Mixing Power (Kw)	3	5.5	7.5	11	15	18.5
Mixing Star*Blade	1*2	1*2	1*2	1*2	1*2	1*3
Side Scraper	1	1	1	1	1	1
Discharge Scraper	-	-	1	1	1	1
Discharging Power (KW)	Pneumatic Discharging			2.2	2.23	2.2
Weight (Kg)	750	1000	1300	1500	2000	2400

Item	LCPM750	LCPM1000	LCPM1250	LCPM1500	LCPM2000	LCPM2500	LCPM3000
Feeding Volume (L)	1125	1500	1875	2250	3000	3750	4500
Feeding Capacity (Kg)	1800	2400	3000	3600	4800	6000	7250
Output Volume (L)	750	1000	1250	1500	2000	2500	3000
Mixing Power (Kw)	30	37	45	55	75	90	110
Mixing Star*Blade	1*3	2*3	2*3	2*3	3*3	3*3	3*3
Side Scraper	1	1	1	1	1	1	1
Discharge Scraper	1	1	1	1	2	2	2
Discharging Power (Kw)	3	3	3	3	4	4	4
Weight (Kg)	3900	5500	6000	6500	9200	11000	12000

Mixing Locus Diagrams
The diagram shows the perfect mixing action of the counter-current planetary mixer from 6 to 60 seconds after materials added. Note that the floor is completely swept by the mixing star's action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
Factory Visit
Welcome to visit the factory
Product Application
Can be customized according to your project, please contact us!

Concrete	Other Construction Material	Refractory Materials	Others
Ready-mixed Concrete	Dry Mortar	Shaped refractory	Glass
Precast Concrete	Wet Mortar	Unshaped refractory	Fertilizer
Foam Concrete	Gypsum		Water treatment
Color Concrete	Aggregate Mixing		Mine backfill
Light Concrete	Emulsified asphalt
Shotcrete	Cement adhesive

---
