Basic Info.
Material
Brass or Stainless Steel
Pressure
Ordinary Pressure
Valve Structure
Direct Action Diaphragm Structure
Application
Industrial Usage
Working Pressure
Air, Water, Steam:0.1~1.5MPa
Max. Pressure Resistance
1.5MPa
Working Temperature
-5~185(Celsius)
Acting Type
Normally Closed
Material of Oil Seal
PTFE
Transport Package
Plastic Bag + Inner Box + Carton Box
Specification
CE/ ISO/ROHS
Production Capacity
10000sets/Month
Product Description

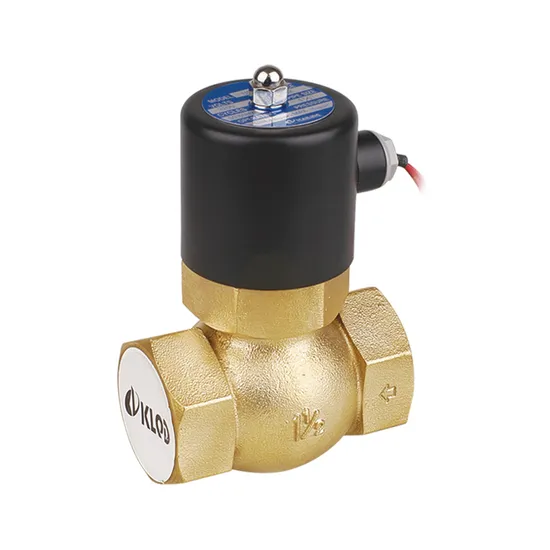

2/2 Way US Series US-40 220V Pilot Operated Water Steam Solenoid Valve
| US(2L) | 15 | SS | F | AC220V |
| 2/2 Way Solenoid Valve | Port Size 15:ZG1/2'' 20:ZG3/4'' 25:ZG1'' 35:ZG1-1/4'' 40:ZG1-1/2'' 50:ZG2'' | Material of body S.S.:Stainless Steel Brass | Blank:Thread F:Flange | Standard Voltage DC12V DC24V AC24V 50Hz/60Hz AC110V 50Hz/60Hz AC220V 50Hz/60Hz AC380V 50Hz/60Hz |
| Model | US(2L)-15 | US(2L)-20 | US(2L)-25 | US(2L)-35 | US(2L)-40 | US(2L)-50 |
| Working Medium | air,water,steam |
| Operation | pilot operated |
| Acting Type | normally closed |
| Orifice Size(mm) | 17 | 22 | 30 | 50 |
| CV Value | 4.8 | 12 | 20 | 48 |
| Port Size | ZG1/2'' | ZG3/4'' | ZG1'' | ZG1-1/4'' | ZG1-1/2'' | ZG2'' |
| Operation Fliud Viscosity | 20CST Below |
| Operating Pressure | air,water,steam:0.1~1.5MPa |
| Max. Preaaure Resistance | 1.5MPa |
| Operating Temperature | -5~185ÂșC |
| Voltage Range | -10%~+10% |
| Material of Body | brass or stainless steel |
| Material of Oil Seal | PTFE |
Packing & Delivery
Payment
Application
Our Company
NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection .
FAQ
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry .
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
>>
