GYFTC8Y Aerial Fig-8 24G652D Span100 PE Jacket Optical Fiber Cable

Product Description

GYFTC8Y AERIAL FIG-8 SM 24FO G652D SPAN 100M OPTICAL FIBER CABLE
2-288 cores available
Design, structure and span can be customized
Single mode fiber G652D
Self-supporting aerial laying

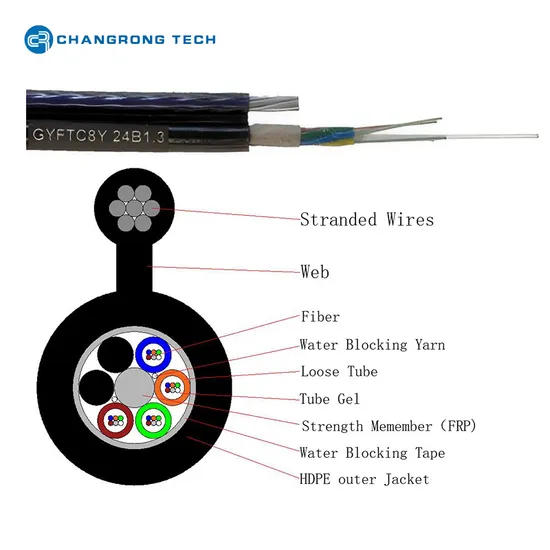

Cross Section
Detailed Photos

Product Description
The fibers are positioned in loose tubes that are made of high-modulus plastic and filled with tube gel. The tubes (and fillers) are stranded around a NON-metallic central strength member to form a cable core.The core is filled with water-blocking compound. Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer jacket is extruded.
• Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
• Small size, light weight and soft, easy for installation
• Hydrolysis resistant loose tube
• Tube gel ensures critical protection of fiber
• Water blocking yarn and tape enhancing moisture-proof

Application
Self-supporting Aerial Installation

Product Parameters

Item		Value
Span		100M
Fiber Counts		24
Tube Number		4
Filler Number(black-PP)		2
Fiber Counts/ Tube		6
OD of Tube		2.0±0.1 mm
Thickness of Tube		0.30±0.05 mm
Material of Tube		PBT
Color of Tube		Blue Orange Green Brown
Tube filling compound		Thixotropic gel
Central Strength Member		2.2mm FRP
CSM PE coat		-
Water Blocking Material		Water Blocking Yarn Water Blocking Tape
Cable	Thickness of sheath	Nominal 1.6 mm
	OD	10.1mm±0.5mm
Web	Width	1.5±0.5mm
	Height	1.5±0.5mm
Messenger	Material	Galvanized Stranded Steel Wire
	Diameter	1.2mm
	Number	7
	Thickness of sheath	Nominal 1.0mm
	OD	5.6±0.5mm
Sheath Material		HDPE
Height		17.2±1.0 mm
Weight		160(±10) kg/km

Company Profile

Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, with total investment of USD 306 million, is one of the high-tech enterprises specialized in R&D, production and sales of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines (for both fiber &cable), an annual production capacity of 15 million Fiber Kilometers, own lab with advanced equipment, CROFC is devoted to achieve the best solutions for customers.
Catalogue
Optical Fiber: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY, GYFTC8Y
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S, GYFXTC8Y
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH
Annual production capacity
Optical Fiber: 15 million km
Outdoor cable : 35000KM cable length
Drop Cable: 99600KM cable length
