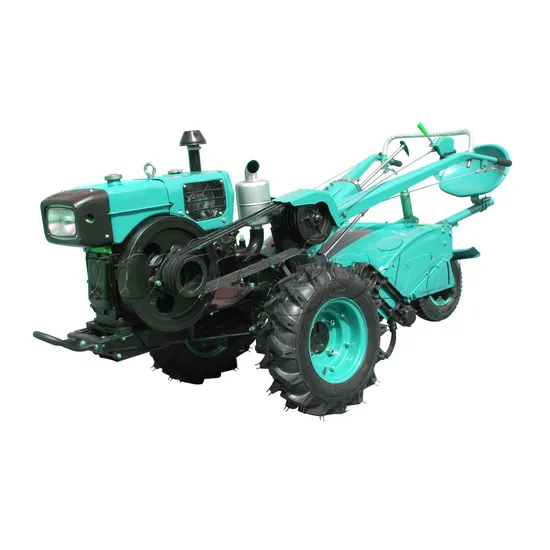

12HP Walking Behind Tractor Mx-121 (DF type) /Power Tiller

Product Description

Goods Description:
MX-121 Walk Behind Tractor features the following advantages:
1. Dual-function type that can be used as a means of traction as well as drive.
2. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
3. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.
4. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached.
5. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Technical Specifications:

Model		Unit	MX-121
Structure weight	Without rotavator	kg	353
	With rotavator		458
Working weight (with rotavator)		kg	493
Turning speed of rototilling shaft		rpm	188/300
Overall dimensions (LxWxH)		mm	2680 x 960 x 1250
Number of blades		PCS	18
Rototilling width		mm	600
Type of tractor			Single axle, dual-purpose for both traction & drive
Travelling speed	Forword	Km/h	1.4, 2.5, 4.1, 5.3, 9.4, 15.3
	Reverse		1.1, 3.8
Type size			6.00-12
Wheel track		mm	800, 740, 640, 580(normally use 800)
Min. ground clearance		mm	185
Min. turning radius		m	0.9 (with no rotavator)
Model of engine			ZS195N
Type of engine			Horizontal 4-stroke
Bore x stroke		mm	95× 115
Total displacement		L	0.815
Compression ratio			20: 01
Turing speed of crankshaft		rpm	2000
1-hour rated output		KW/hp	9.3/12.65
12-hour rated output		KW/hp	8.3/11.29
Specific fuel consumption		g/kw. h	≤ 258
Specific lube oil consumption		g/kw. h	≤ 2.04
Cooling mode			Condenser (Radiator)
Main farm implements (optional)			Anti-skid steel wheel Model 100-640 Double-furrow plough Model 1LS-220 Disk plough Model 1LS-220Y Power driven disk plough Model 1LYQ-320 Sprinkler Model 8Y-80 Swather/reaper Model 4GL-120 Trailer 7C-1.5 (Standard) Trailer 7C-1.5BH (Hydraulic dumping)

---
