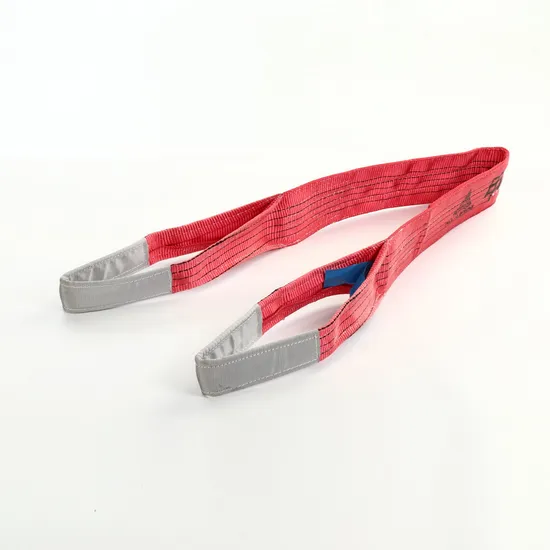

Lifting Flat Polyester Webbing Sling Hoist Strap

Product Description

Features:
1. 100% high tenacity polyester
2. Single ply or double ply
3. With reinforced lifting eyes
4. Low elongation
5. Length available:1m to 10m
6. Safety facto available:5:1, 6:1, 7:1
7. According to EN 1492-1:2000

Coloucoded accoding to EN 1492-1	Woking Load Limit with 1 webbing sling					Working Load Limit with 2 webbing sling				Webbing width(mm)
	Staight lift	Choked life	β			Straight life up to 45°	Choked life up to 45°	Straight life 40°-60°	Choked life 45°-60°
			0°-7°	7°-45°	45°-60°
	Bitmap Bitmap	Bitmap Bitmap	Bitmap Bitmap	Bitmap Bitmap	Bitmap Bitmap	Bitmap Bitmap	Bitmap Bitmap	Bitmap Bitmap	Bitmap Bitmap
	1.0	0.8	2.0	1.4	1.0	1.4	1.12	1.0	0.8
WLL 1T	1.000	0.800	2.000	1.400	1.000	1.400	1.120	1.000	0.800	30/50
WLL 2T	2.000	1.600	4.000	2.800	2.000	2.800	2.240	2.000	1.600	60/60
WLL 3T	3.000	2.400	6.000	4.200	3.000	4.200	3.360	3.000	2.400	90/75
WLL 4T	4.000	3.200	8.000	5.600	4.000	5.600	4.480	4.000	3.200	120/100
WLL 5T	5.000	4.000	10.000	7.000	5.000	7.000	5.600	5.000	4.000	140/125
WLL 6T	6.000	4.800	12.000	8.400	6.000	8.400	6.720	6.000	4.800	180/150
WLL 8T	8.000	6.400	16.000	11.200	8.000	11.200	8.960	8.000	6.400	240/200
WLL 10T	10.000	8.000	20.000	14.000	10.000	14.000	11.200	10.000	8.000	300/250

FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

---
