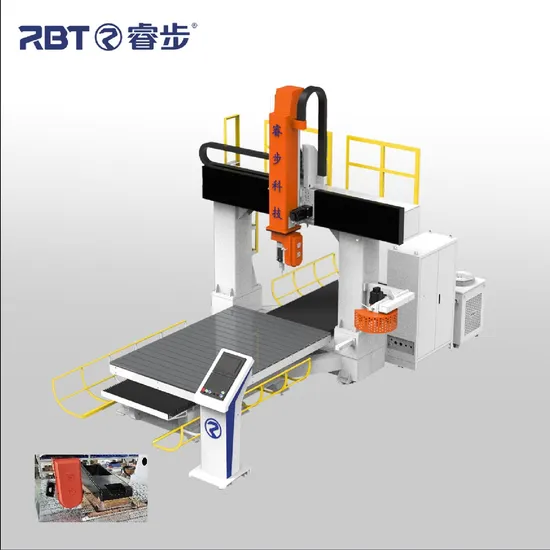

Open Gantry Machine 5 Axis CNC Machine for Plastic Parts

Product Description

Open Gantry Machine 5 axis Cnc Machine For Plastic Parts
(5 Axis cnc machine is also called Five-axis CNC Machine Tool, Five-axis Machining Center, CNC (Computer Numerical Control) )
Parameters

Content	Parameter	Content	Parameter
Name	Non-metal 5 Axis CNC Machine	Brand	RBT
Model	RB-F5-1930-Z08 / RB-F5-2035-Z08	Voltage	3-380V
XYZ Axis Travel	1900*3000*800mm/2000*3500*800mm	Machine Rated Power	9.9kw~29.1kw
C/B Axis Travel	+-540°/ +-120°	Weight	2900kg-3500kg
Spindle Power	3kw~20kw	Dimension	L5100*W2610*H3982mm
Control System	Taiwan Syntec	Machine Origin	Fujian

Machine Feature1 The system adopts the SYNEC five-axis linkage CNC system, which can complete the production and processing of the entire complex surface of the workpiece in one process;2. The work is easy to clamp and no special fixture is needed;3. C, B-axis rotary processing can reduce the processing dead angle of complex workpieces;4. High processing precision, efficient and accurate positioning;5. The equipment combines power, speed and precision, and can be equipped with multiple functions such as dust collection, automatic tool change and RTCP;6. The actual configuration of the equipment is subject to the technical data. The machine travel can be customized according to the needs of customers.
Application
Applicable to: composite materials: carbon fiber (PCM/RTM/SMC/LFT, etc.), glass fiber, carbon/carbon and other products;
Plastic materials: ABS, PVc,PC, PP, PS, PE, PET, HDPE, PETG, Acrylic, etc., high-density sponge, styrofoam foam, wood, substitute wood, stone, plaster etc.
Widely used in: Mold manufacturing, composite material processing, and thick sheet thermoforming processing in industries such as aerospace, raildtransit, automotive interior and exterior, sporting goods, medical beauty, white goods, handicrafts, and sanitary ware.
Successful Case:
Position measurement and calibrition by laser interferometer
Machine Performance:
It is able to handle large workpieces with maximum dynamism. 5 axis cnc machine is particularly suitable for use by operators in model building, the automotive and aerospace industries, and the energy sector. With a 5-axis machining capacity of up to 24,000 RPM, complex and very heavy parts can be economically machined. The gantry design maximizes the use of the working area and the drive range can be modularized.
High precision CNC cutting machine, with advanced technology and functions. The machine is designed with a gantry structure to ensure stability and accuracy, and has a 5-axis linkage function to efficiently process complex curved parts. It is suitable for processing most materials, including glass, ceramics, plastics, wood and foam. The cutting surface is very flat, smooth, burr free, and will not damage the surface of the material.
High fuselage stability and optimum rigidity to ensure machining accuracy. The X/Y axis is driven by a linear motor that provides excellent dynamic and static rigidity, while the Z axis is driven by a roller screw, equipped with innovative water-cooling technology that ensures concentricity of the center of moving parts and the center of weight, eliminating vibration.
The 5-axis CNC gantry machining center emphasizes the response time of after-sales service within 1 hour, and cooperation with quality parts suppliers ensures the superiority of the machine and a design life of more than 10 years. We provide comprehensive CNC solutions for a variety of industries including solid wood, chemical wood, plastics, ABS, PP/PE, GFRP, CFRP, ceramics, gypsum, stone, aluminum, nylon and more.
What is the difference between 3 and 5 axis CNC?
The main differences between 3-axis and 5-axis CNC machining lie in their capabilities, flexibility, and applications:
1. Axes and Movement:
3-axis: Uses X, Y, and Z linear axes (left-right, front-back, up-down). The tool moves along these axes, and the workpiece remains stationary.
5-axis: Adds two rotational axes (e.g., A and B or C), allowing the tool to tilt and rotate around the workpiece. This enables cutting from nearly any angle.
2. Processing Complexity:
3-axis: Best for simple 2D/2.5D parts, flat surfaces, and basic 3D shapes. Struggles with deep cavities, undercuts, or intricate curves.
5-axis: Handles highly complex geometries, including curved surfaces, angles, and undercuts. Ideal for aerospace components, medical implants, and molds.
3. Efficiency and Setup:
3-axis: Requires multiple setups and manual repositioning for complex parts, increasing labor and error risks.
5-axis: Reduces setup time by machining multiple faces in one operation, minimizing errors from re-clamping.
4. Accuracy:
5-axis: Offers higher precision due to fewer setup changes and the ability to maintain optimal cutting angles.
3-axis: Good for basic needs but may accumulate errors with repeated repositioning.
5. Cost:
3-axis: Lower initial cost, simpler maintenance, and easier programming.
5-axis: Higher investment in equipment, maintenance, and specialized training for operators.
When to Choose:
3-axis: Cost-effective for simple parts, prototypes, or high-volume production.
5-axis: Essential for complex, high-precision parts where design flexibility and efficiency are critical. In summary, 5-axis machines excel in versatility and precision but come with higher costs, while 3-axis machines are simpler and more budget-friendly for straightforward tasks.

---
