Basic Info.
Automatic Grade
Automatic
Type
General Rubber Machinery
Using Life
More Than 15 Years
Type of General Rubber Machinery
Rubber Plastics Kneading Machine
Type of Tire Machinery
Rubber Plastics Kneading Machine
Color
According to Your Requirement
Transport Package
Packed in Wooden Case
Specification
X(S)N-55*30
Production Capacity
200 Sets/Month
Product Description
♥ Qingdao HUICAI Cooperate Sincerely With You ♥

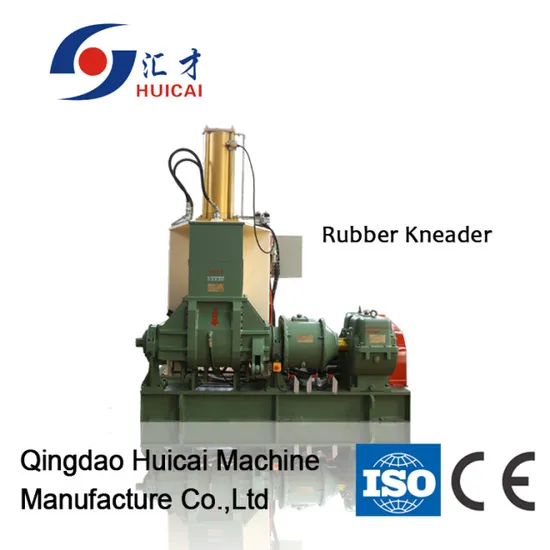

Rubber Kneading Machine/Rubber Kneader
♣ Technical Parameters:
Type
| X(S)N-3*32
| X(S)N-10*32
| X(S)N-20*32
| X(S)N-35*30
| X(S)N-55*30
| X(S)N-75*30
| X(S)N-110*30
| X(S)N-150*30
|
Total Volume of kneading chamber
| 8
| 25
| 45
| 75
| 125
| 180
| 250
| 325
|
Total Volume of mixing chamber
| 3
| 10
| 20
| 35
| 55
| 75
| 110
| 150
|
Driving motor power
| 5.5
| 15
| 30
| 55
| 75
| 110
| 185
| 220
|
Tipping motor power
| 0.55
| 1.1
| 1.5
| 2.2
| 3.0
| 4.0
| 5.5
| 5.5
|
Tipping Angle
| 135°
| 140°
| 140°
| 140°
| 140°
| 140°
| 140°
| 140°
|
Rotational speed of the rotor
| 0~60,32/24.5
| 30/23.5
| 30/25
| 30/24.5
| 30/24.5
| 30/24.5
| 30/24.5
| 30/24.5
|
Flow rate of compressed air
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
| 0.6-0.8
| 0.6-0.8
| 0.6-0.8
| 0.6-0.8
|
Flow rate of compressed air
| ≥0.3
| ≥0.5
| ≥0.7
| ≥0.9
| ≥1.0
| ≥1.0
| ≥1.5
| ≥1.5
|
Pressure of Cooling water
| 0.2-0.4
| 0.2-0.4
| 0.2-0.4
| 0.3-0.4
| 0.3-0.4
| 0.3-0.4
| 0.3-0.4
| 0.3-0.4
|
Pressure of heated steam
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
| 0.5-0.8
|
Overall dimensions(LxWxH)
| 1660*960*1750
| 2580*1300*2280
| 2630*1520*2550
| 3200*1900*2945
| 3360*1950*3050
| 3760*2143*3155
| 4075*2712*3580
| 4200*3200*4000
|
Weight
| 2000
| 3300
| 4500
| 6500
| 7200
| 10000
| 14500
| 19500
|
♣ Machine Picture Show:
We can according to all your requirements for your design is most suitable for your machine !
♣ Company Information:
(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, precuring equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.
♣ Foreigners Visit:
♦ Contact us ! ♦
♥ We can according to all your requirements, design your machine you require!
♥ If you are interested in our products, please contact me !
>>
