Sdcad Factory Price Mineral Powder Chemical Fertilizer Pneumatic Conveying Equipment for Powder

Product Description

Pneumatic conveying system
SDCAD - A pneumatic conveying system transfers dry bulk materials or powders through an enclosed conveying pipeline using pressure differential and gas flow (usually air), generated by an air movement device such as a fan, roots blower or compressor. Pneumatic conveying systems use a series of pipelines that move products by pumping air.These products typically consist of powders or granules. These systems function by moving materials through enclosed, airtight pipelines through a combination of airflow or another type of gas and pressure. The forms :Pneumatic conveying are the dilute phase and dense phase.
The Type: Pneumatic conveying are pressure and vacuum
Application: Cement, fly ash, starch, sugar, salt, sand, plastic pellets, oats, polymers, lime, soda ash, plastic resin, plastic powder, dry milk, and feeds Pneumatic Conveying System Full Process Solution Provider SDCAD
Why choose us?
Our pneumatic conveying is designed to match with flow requirement of cement plant Cement silo, and we have 20+ years of experience in cement equipment manufacture and EPC project. The pnenumatic conveying produced by SDCAD is easy to install, safe and reliable, and win a good reputation on the market. We own a professional R & D, design, production, installation team, and provide users with one-stop service, including the process design, automatic control and steel plate warehouse, transportation, cleaning, dust removal equipment manufacturing, installation, commissioning and personnel training.
We can provide The positive or negative pressure in a pneumatic conveying line moves materials safely with little damage or loss. Pneumatic conveying systems use pipes or ducts to transport materials on a stream of air.
Three coneying modes
A:Suspend flow the material becomesuspend state in the pipe, this way suit low pressure, this way suit dilute phase shortdistance. B:Group flow the material become groupstate, this way suit middle pressure longer distance. C:Bolt flow the material is cut intobolt by pulse gas valve in the pipe, then go on depending on the air quiet pressuredifference. It is suitable for high stress, dense phase, longdistance, and low velocity.
PRODUCT SPECIFICATIONS
Advantages of SDCAD Pneumatic conveying
* Due to the compact nature of the conveying pipe transfer line, a pneumatic conveying system can be routed around existing equipment, giving more flexibility than a mechanical conveying system.
* Can run vertically or horizontally over a long distance.
* As the system is enclosed, there is protection against dust emissions to the atmosphere and also protection of the conveyed material from external contaminants.
* Pneumatic conveying systems can be easier and more cost effective to maintain than a mechanical conveying system - fewer moving parts.
* The ability to maintain a controlled atmosphere around the material.
* Minimise system wear from abrasive materials and damage to fragile materials.
* Take up less floor space so are easier to locate.
* Can have multiple pick up and discharge points. PRODUCT CONFIGURATION

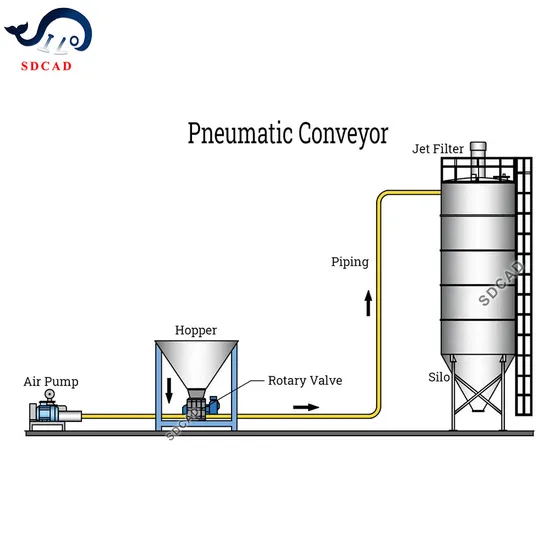

Pneumatic Conveying Design All pneumatic systems use pipes or ducts to transport materials on a stream of air. An air mover generates pressure or a vacuum and is located in the system at the beginning to push materials through the line or at the end to pull materials through.
The basic components of a pneumatic system are:
1. Pressure blower or vacuum pump
2. Rotary airlock valves
3. Conveying line
4. Diverter valves
5. Filter receiver
6. Cyclone separators
7. Batching systems
8. Hoppers
9. Controls
Full Process Solution Provider - SDCAD
* A pneumatic conveying system allows greater versatility than a mechanical conveying system because it may be compatible with existing equipment due to the small nature of the conveying pipe's transfer line.
* These systems can cover a large distance running either horizontally or vertically.
* Due to the enclosure of the system, both the delivered material and dust emission to the atmosphere are protected from outside contaminants.
* Because they have fewer moving components than mechanical conveying systems, pneumatic conveying systems can be simpler and more cost-effective to maintain.
* They maintain a capacity to keep the environment around the substance under control.
* They reduce abrasive material wearing on the system and fragile materials damage.
* These systems are easier to find because they occupy less floor space.
* Various pick-up and discharge points are possible.
Product Show

Pre-Sales Service	After-Sales Service
Customer consultant 24 hour online; Engineer team provide design drawing; Skilled staff responsible for production; Take pictures for all Production process.	Provide installation instruction; Solve any problems involved; Tell the machinery maintain guidance; Regular monthly sales tracking.

Related Products
Bolted Silo Container Horizontal Silo Big bag Hopper
Dry Mixing Station Asphalt Mixing Plant and Bitumen Tank Bag Packaging / Unpackaging machine
Concrete Batching Plant Mobile / Dry Concrete Batching Plant Planetary Mixer / Twin Shafts Mixer
Bag discharging machine Pneumatic Conveying System Dust Collector FAQ
Q - May you introduce your Factory?
A - Our factory is with 10,000m2 factory floor area. More than 100 workers will service for you. Our factory is located in Shandong -the only province which cover all industrial sectors in China. Q - What's the Advantage of your products?
A - Full Process Solution Provider of Mixing, Storage, Conveying.
Our engineers team provide Customized Solution for every project!
Q - What is your Delivery time?
A - 3-7 days for spare parts; 10-20 days for simple machine. 30-50 days for production line. Q - What Certificate do you have to ensure quality?
A - CE certification is provided.
ISO health, ISO Quality, ISO Environment are provided.
Q - Do you have Quality Check QC Service?
A - QC checking work is including from material, steel processing, welding, painting, electric system, test, delivery, installation. Quality check for full process
Q - How can I Get Solution to my inquiry?
A - Pls send inquiry to us now,
More project and contact information more better. Engineers will make plan for you. Our Sales manager will Quote to you in the first time.

---
