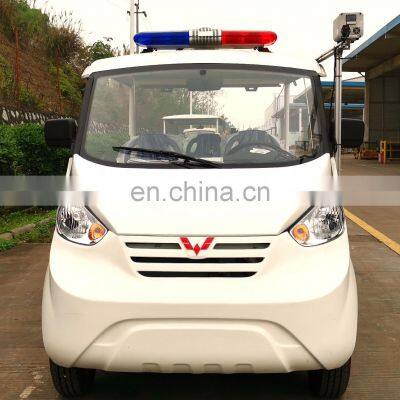

| Model | M100 mobile temperature measuring car | ||
| Size | Long,mm | 3350 | |
| Wide , mm | 1530 | ||
| High , mm | 1870 | ||
| Wheelbase , mm | 2130 | ||
| Front Wheel , mm | 1280 | ||
| Rear wheel , mm | 1290 | ||
| Floor height from the ground , mm | 390 | ||
| Quality Parameter | Maximum total mass , ㎏ | 1460 | |
| Curb weight , ㎏ | 950 | ||
| Passenger Capacity | 5 | ||
| Chassis | Minimum ground clearance , mm | 150 (no load)/130 (full load) | |
| Tire specification | 165/70R13 | ||
| Engine | Model | LJ465-2AE | |
| Displacement | 1.05L | ||
| Gear position | 5 in 1 | ||
| Performance Parameters | No load maximum speed , ㎞/h | 30 | |
| Maximum speed with full load , ㎞/h | 30 | ||
| Maximum gradient , (°/%) | 16/30 | ||
| Thermal Imaging Human Body Temperature Measurement Binocular Medium Gun Camera | Working temperature | +10℃~+30℃ | |
| Working humidity | ≤95% | ||
| Environment adaptation | Support heating (temperature protection for main control chip) | ||
| Protection level | IP67, TVs 6000V lightning, surge and surge protection | ||
| Product size | 279.9mm×103.8mm×95.8mm (L x W x H) | ||
| Packing dimensions | Single set with package:365mm×175mm×176mm (L x W x H) Protective box:902mm×380mm×380mm(Wx Lx H) | ||
| Net weight | ≤1.4kg | ||
| Gross weight | ≤1.9kg | ||
| Appearance | Gun in two eyes | ||
| Use type | Thermometric type | ||
| Detector type | Uncooled vanadium oxide focal plane detector | ||
| Detector pixel | 400×300 | ||
| pixel size | 17μm | ||
| Spectral range | 8μm~14μm | ||
| Thermal imaging proximity | 2.0m 1.0m | ||
| Thermal imaging electronic amplification | Level 16 | ||
| Thermographic image flipping | 90°/180°/image | ||
| Measuring range | 30℃~45℃ | ||
| Maximum resolution | 1920x1080 | ||
| Visible pixel | 2 million | ||
