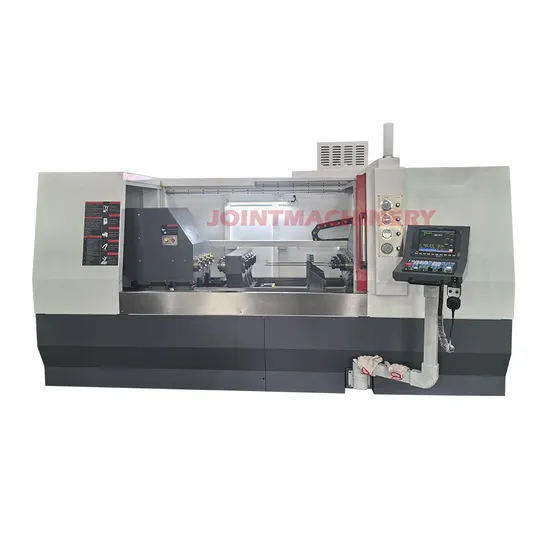

SD-400 Multi-Spindle CNC Deep Hole Drilling Machine Tool for Bar Stock

Product Description

Drilling is the most basic process in machining operation, is also the process with the most wide range in application field. Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll rocessing, and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Multi-Spindle Deep Hole Series
The multi spindle deep hole drill is a special machine tool designed for machining the center deep hole of shaft parts, aiming to provide customers with a solution of high effciency, high precision and high finish for deep hole machining of shaft parts.
1.It is designed for machining the center hole of the bar stock, and is specially used for deep hole machining of the center hole.
2.Double spindle processing at the same time, greatly improving the work efficiency.
3.Taper hole guideance and high pressure oil cooling provide guarantee for high precision and high finish.
4.Siemens or Taiwan's new generation CNC system can be selected according to customer requirements.
5.The equipment can be euqipped with a mainpulator for automatic loading and unloading, with a high degree of automation.
SD-400 Multi-Spindle CNC Deep Hole Drilling Machine Tool for Bar Stock

Model	Unit	SD-400
Inner diameter of drilling	mm	2.0-20
Max drilling depth	mm	400
Max diameter of workpiece	mm	60
Max length of workpiece	mm	400
Max rotating speed of principalaxis	rpm	6000
Clamping diameter range	mm	10-100
Spindle feed speed	mm/min	0-150
Spindle travel speed	mm/min	0-5000
Workpiece rotation speed	rpm/min	144
Spindle rotating motor power	kw	5.5/7.5
Workpiece rotating motor power	kw	0.75*2
Total power of machine tool	kw	26
Coolant pressure range	mpa	3-12
Coolant flow range	L/min	0-64
Machine size	mm	4500*2000*2500
Machine weight	kgs	4000

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
