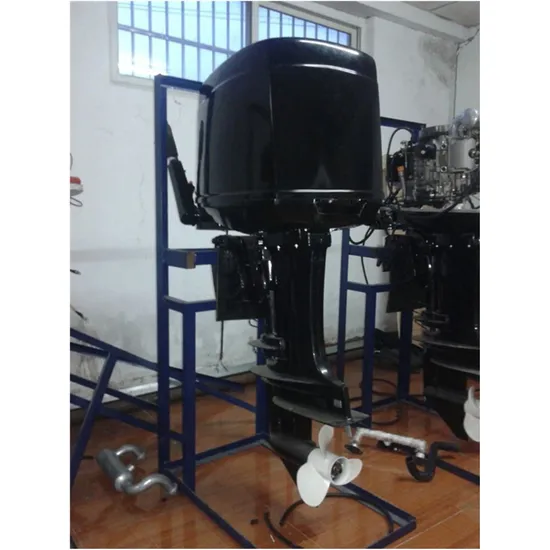

V-Double Cylinders 4 Stroke Water Cooled 25HP Electric Diesel Outboard Motor

Product Description

V-double cylinders 4 stroke water cooled 25HP Electric Diesel Outboard Motor

Product Description Engine type V-double cylinders, 4 stroke, water cooled, direct injection
Bore x Stroke (mm x mm) 2-80×75mm×mm
Displacement of Piston (L) 0.75L
Rated Speed of Output Shaft (rpm) 4500r/min
Max Output power KW/Ps 18.4(25)/r/4500/min
Rated Output power KW/Ps 17/r/4500/min
Direction of Output Rotation Anticlockwise (from the output side)
Valve Clearance (mm) 0.1-0.15(cold position)
Starting Way Electric Start
Fuel Kgf/cm2(Mpa) 220-230(21.6-22.6)
Fuel Supply Advance Angle 200±10
Fuel Capacity(L) 20
Fuel mark NO.0(Summer)/ No.-10(Winter)
Method of Lubrication Pressure Splash Compound
Lubrication Oil SAE10W-30, Level CC above
Lubrication Oil Capacity(L) 2.5
Engine Size (LxWxH) (mm) 525×391×459
Engine Net Weight (Kg) ≤58Kg
Machinery Net Weight (Kg) ≤118Kg
Speed of Impeller >2000r/min
Diameter of Impeller 11"
Transmission Fluid Middle Duty Industrial Gear Oil HL-20
Transmission Capacity 3L
20'/40' HQ(pcs) 36/63
Applicable Scope 9-16 Meters Ship, Maximum load 10tons

---
