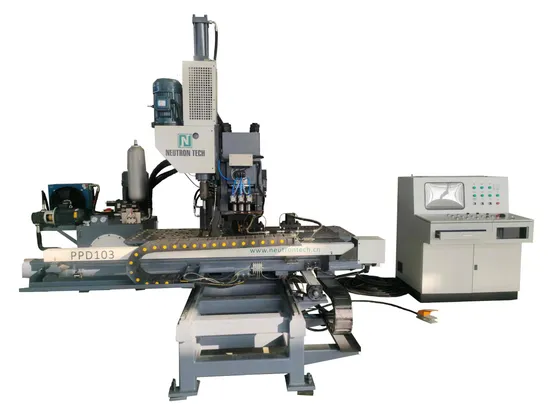

CNC Hydraulic High Speed Plate Punching CNC Machine Plate Steel Metal Processing Machine

Product Description

Product parameters 1.Max. punching force:1000kN
2.Max. size of workpiece: 775×1500mm
3.Thickness of workpiece:5 ~ 25mm
4.Max. punching diameter : φ25.5mm(16Mn,20mm thickness Q235, 25mm thickness)
(we only provide the die of 16mm thickness for test run. If you want the die of 20mm,25mm thickness for test run, you must provide the female die yourself) 5.No. of die station: 3(one of them can be equipped with stamping die)
6.Min. distance between hole and plate edge
Punching: 25mm
Drilling: the distance depends on the hole diameter 7.Max. marking force: 800kN
8.No. and size of character: 10 (14×10mm)
9.Drilling diameter (high-speed steel twist drill): φ16 ~ φ50mm
10.Rotation speed of drilling spindle (stepless speed variation):120~560r/min, 5.5kW
11.Max. stroke of drilling spindle: 180mm
12.Feeding speed (hydraulic stepless adjustment) 20~200mm/min
13.The processing precision:
It can fit the stipulations of first-rate products in < The Classifying Standard of Steel Tower of the Transmit Electricity Line >. The specific numerical value:
14.The space between arbitrary holes on the joint plate: longitudinal: ±0.5mm transverse : ±0.5mm
15.Node plate: space between any two group holes : ±1.0mm, the space of the hole to the side of the steel plate: ±1.0mm
16.The vertical degree, "t" is the thickness of plate ≤ 0.03t and ≤ 2mm 17.Motor power of hydraulic pump: 15kW
18.Power of servo motor (X and Y axes): 2×2kW
19.The compressed air force ×discharging quantity: 0.5MPa×0.1m3/mi
n
20.Overall dimension (length × width ×height): 3100×2988×2720mm
21.weight :Approx.6500kg
22.The motor of X and Y axes are world famous brand AC servo motor. The main electric controlling components (PLC and CNC orientation system, encoder and switch without touching), hydraulic components, pneumatic valve (electromagnetic valve, overflow valve, and unloading valve) and cylinder are all world famous brand.
23.Working environment:
Working temperature: 0ºC~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz
