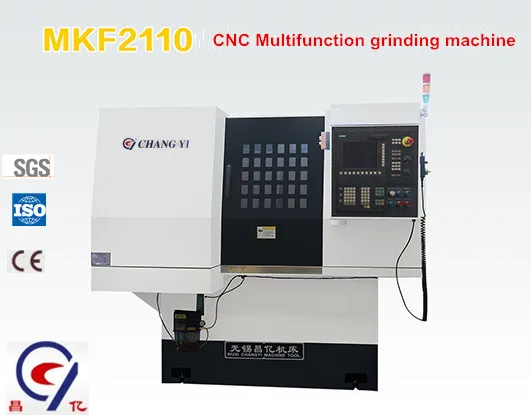

Monthly Deals Mkf2110 CNC Grinder Compound Multi-Function ID & Od CNC Machine

US$80,600.00

1 Piece

US$80,000.00

2+ Pieces

Basic Info.

Model NO.

MKF2110

Abrasives

Grinding Wheel

Controlling Mode

CNC

Automatic Grade

Automatic

Cylindrical Grinder Type

Internal & External Grinding

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Roundness of Inner Bore

2um

Cylindricity of Inner Bore

3um

Surface Roughness of Inner Bore

Ra0.4um

External Cylindricity

2.5um

External Roughness

Ra0.63um

The Flatness of End Face

0.6um

Weight of Machine Tool

3100

Rated Power

10-17kw

Transport Package

Waterproof Film Wrapped, Wooden Case Package

Specification

2100x1700x2500mm

Trademark

CHANGYI

Origin

Wuxi, China

HS Code

8460292

Production Capacity

20 Sets Per Year

Product Description

* Main characteristics of this machine tool
* This machine tool consists of three axises. Three axis motions adopt the rolling ball screw of the servo motor. Among them, X-axis is the feed system, and Z1-axis and Z2-axis are three-axis linkage multifunction CNC grinding machine tool of the reciprocating system.
* When clamping once, this machine tool can grind the work piece external and internal cylinder, inner taper hole,inner end face of stepped hole and outer end face. Grinding cycle is done automatically.
