TM- Z5 A4 thin EL panels printing uv curing equipment kit

Product Details

Product Description

Product Description
TM- Z5 A4 thin EL panels printing uv curing equipment kit
Advantages:
1, Electric printing runs smoothly, High precision printing;
2, Cold light source , Drying sheet is not deformed;
3, Energy saving and environmental protection, Suitable for clean room(dust-free workshop).
plastic sheet print tamprinter Video :
https://youtu.be/6NGKTmtbf-w
/v_show/id_XMzIzODUwMDI5Mg==.html?spm=a2hzp.8253869.0.0
Aluminum ceiling vertical screen printing machine passes the LED uv machine drying test video after printing
/v_show/id_XMTg4NzAxNzQyMA==.html?spm=a2hzp.8244740.userfeed.5!2~5~5~5!3~5~A#paction
Technical parameters:

TM-Z5 AUTO SCREEN PRINTER	TMP-6090 Oblique arm flat screen printer 8443192290	1, Worktable size(mm): 600800 2, Max print area(mm): 500700 3, Max plate size(mm): 8001000 4, Min plate size(mm): 350450 5, Thickness of substrate (mm): 0-20 6, Printing speed(pcs/h): 500-1200 7, Working air pressure(Mpa): 0.3-0.5 8, Gas consumption(0.6Mpa)(L/pcs): 13/pcs 9, Power(kw): 2.3 10, Work table minimum relative height (mm): 820 11, Overall Dimension(l×w×h)(cm): 160125130//176138145 12, Weight (kg): 500 13, Rated voltage(V/Hz): 220V50Hz Free fitting clamp 700mm--1pcs，tinge 720mm---1pcs； clamp 1000--1pcs，tinge 1020mm--1pcs. Tool box
TM-Z5 AUTO SCREEN PRINTER	TM-LED UV600-L UV dryer 8543709990	1,Conveyorbelt width(mm): 600 2, lamp irradiation width(mm): 600 3,Product max height (mm): 20 4,Conveyor speed (m): 2~30 5,Power(P/V/Hz): 1/220/50 6,LED UV lamp（KW）: 1.2 7,Conveyor power（W）: 90 8,Total power（KW）:2 9,Dimension（LWH）22009001000mm 10, Cooling: water-cooled system; 11, Weight(kg): 300

Plate Type: Screen Printer 705kg 7.57CBM
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TM-Z5
Application Scope:
machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.
Automatic Grade: Semi Automatic
Color & Page: Single Color
Warranty: screen printer 18 months, led uv machine 24months
After-sales Service Provided: Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: 20 workdays after payment
Performance & Features

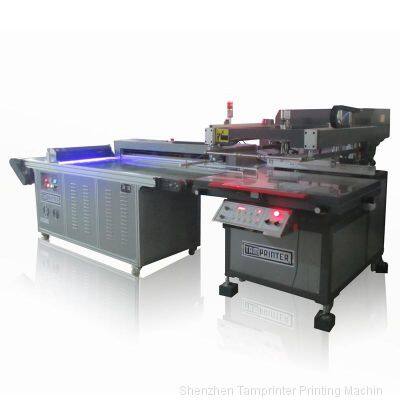

1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), water-cooled system LED UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.
2.1 screen printing machine Features:
2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain
2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems. Especially suitable for LCD sealing side requiring small temperature, film printing and so on.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.
Tamprinter Printing Machinery, one of the largest automatic membrane switch screen printing set manufacturers and suppliers in China , is one of the most famous brands in the world printing industrial. professional Equipment factory, we can offer you TAM-Z3 semi automatic membrane switch screen printing set with high precision and reliable performance. Welcome to buy our quality equipment made in China and experience our customized service.
Hot Tags:：Thin sheet printing machine
