Pulverized Gypsum Production Line Plaster Powder Machine

Product Description

Product Description
The gypsum powder production line of which the material is natural gypsum, are equipped with many advanced technological equipment in domestic and foreign such as material averaging device, double-grade crushing system, plate type conveyor, vertical mill, Ramon mill, gypsum boiling kiln, cooling machine and waste heat recycling system, ect. The boiling kiln is widely used in our nation with the advantages of small, simple, great output, small occupied area, easy control, perfect gypsum microstructure, stable physical properties and low running cost. It has been sold to Thailand, Uzbekistan, Columbia and Mexico along with our production line.

The flow chart of the craft

Jaw crusher---- Hammer crusher----lifter-----martial solo----measuring pump------Mill-----selecting power machine----lifter----raw materials silo----screw feeder----rotation stave ------electrostatic cleaning------cleaning---- cooling---lifer-----finished materials
Quality Standard

The quality of building gypsum is in accordance with Chinese National Standard "Gypsum Powder" (GB9776-2000), and should meet the following requirements:

No.	Item	unit	Indices
1	Initial time	min	≥6
2	Final time	min	≤13
3	Bending strength of 2 hours	MPa	≥2.0
4	Content of CaSO4·2H2O	%	≤5%
5	Content of CaSO4·1/2H2O	%	≥75%
6	Content of CaSO4III	%	≤5%

Detailed Photos

Crushing section


The gypsum rocks with grain size less than 350mm are sent to the receiving hopper via wheel loader, and then fed into the hammer crusher through feeder. The grain size of the gypsum after primary crushing is 25mm. The broken gypsum is conveyed to the 50 m3 hopper via bucket elevator.
One bag filter is installed in this section to avoid flying of gypsum dust in the course of production, so as to ensure clean and healthy production environment.

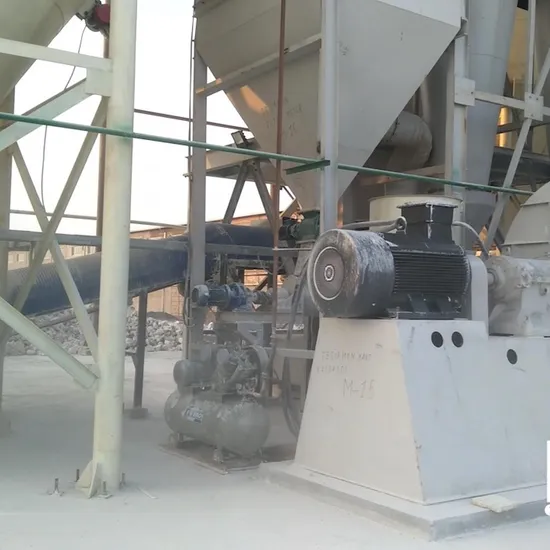

The mill section

The grinding section adopts vertical mill grinding. The vertical mill is energy efficient, versatile new grinding equipment. It has the following advantages: High efficiency, low power consumption, large drying capacity, easy to adjust product fineness, particle size uniformly, easy to control chemical composition, low noise, small metal wear, less dust, simple process system, small area covering, saving investment …etc.

Calcining section
Crushed gypsum stones are fed into the rotary kiln evenly through screw conveyor. The gypsum directly connects with hot air and the hot air transfer the heat to the gypsum. The gypsum absorbs the heat and block of part of crystal water then become calcined gypsum (POP). The construction gypsum through screw conveyor and bucket elevator is sent into separator. The exhausted gas out of rotary kiln contains large amount of gypsum powder, after bag dust collector purification, the gypsum powder get into silo and the exhausted gas into the air.
Finish production

The calcined gypsum powder will be conveyed to the storage silo by the elevator.

After Sales Service
1 Our company has professional installation & commissioning teams, we will install and debug the production line at the customers' place until the equipment produces qualified products.
2 We supply spare parts all the year round. The guarantee of equipment is one year.

3 We are responsible for the technical consultation and service all the year around and help to solve all kinds of technical problems at any time.

4 We will help customers do the consignment and the relevant procedure for import and export.

Packaging & Shipping

Packaging Details	Suitable package for long distance transportation wooden boxes: load electrical cabinet, small parts etc. carton boxes: load motor, screw, bolt etc.
Port	Tianjin port

Company Profile
Hebei Lvjoe Machinery Manufacturing Group Co., Ltd. was founded in 1998, which is a diversified development enterprise integrating R&D, design, production, international trade and engineering equipment. We are a strong unit with comprehensive strength in the national gypsum equipment industry.
We have the certificate of high-tech enterprise which is issued by the nation, the certificate of Gypsum Building Materials Equipment Research Center, the CE quality system certification which is issued by the European Union, the ISO9001 quality system certification. In 2011, the Gypsum Building Materials Equipment Research Center was established. It is a municipal-level civilized unit in Hebei Province, contract-honoring and trustworthy unit.

FAQ
1.Are you a factory or a trading company?
We are a factory. All the related process commercially or technically, feel free contact us!
2.Do you have other gypsum machine?
Yes, we can design and manufacturer almost all kinds of gypsum machine. Gypsum board and gypsum powder production line are our main product around world. Certainly, I can send you a catalog of our product.
3.How's the quality control of your factory?
We have our own QA/QC team controlling all process and product. We also have our own gypsum lab in factory to research new technology and test new design product.
4.What's the after-sale service?
We'll take in charge of the installation and debugging when the product arrive your site. We will also supply 2-year-time wearing parts and spare parts for you. Solve any questions you meet.
5.I have a existed production line, but with some trouble. Can you test and repair for me?
Certainly. We are not merely a manufacturer. We have our own lab and R&D facilities. Thus, We have many clients consulting about the repair and upgrade, which we finally handled all the problems. Contact us directly.

---
