ODM 35A Rigid Chain Scissor Lift Table Stage Platform with National Invention Patent (ZL201010218464.1)

Product Description

Product Description
Flexible Transmission Column Lift, the core driving device of lfting platform, is widely applied to fields such as automotive automation production lines, logistics and stage machinery platforms, etc., especially when the lifting platform needs to be lowered to lowest height with large stroke and heavy load. It has been successfully used at the opening and closing ceremonies of major domestic and foreign events. Rigid Chain (Flexible Transmission Column Lift) is a cutting-edge product designed to meet the needs of businesses seeking reliable, efficient, and precise vertical and horizontal motion solutions. This patented product is an ideal choice for industries that demand high performance and durability.
Features:
• Patented Technology: Includes two proprietary innovations, Rigid Chain (the Flexible Transmission Column Lift) and the Unguided Rigid Column Lift, ensuring superior performance and reliability.
• Compact Design: Space-saving structure ideal for confined installation areas.
• High Efficiency: Transmits power directly to the load, reducing energy consumption and improving operational efficiency.
• Uniform Lifting: Uniform lifting, durable and precise operation.
• Lifting Speed: Maximum lifting speed of 0.3m/s.
• Motor Compatibility: Compatible with direct drive by asynchronous AC dual-brake motors and servo motors with gearboxes, etc.
• Precision Positioning: Achieves highly accurate and stable positioning, and high synchronization accuracy
• Environmentally Friendly: Operates with minimal noise and eliminates hydraulic oil leakage risks.
Benefits:
• Versatile Applications: Widely used in theater engineering, automotive production, logistics, aerospace, and more, catering to diverse industry needs.
• Cost-Effective Operations: Reduces maintenance costs and downtime, leading to long-term savings.
• Enhanced Productivity: Ensures smooth and reliable operations, increasing overall efficiency in production and performance environments.
We believe that Rigid Chain offers an unbeatable combination of innovation, reliability, and value. If you have any questions about this product or would like to explore how it can enhance your operations, please don't hesitate to contact us.
At Shijiazhuang Alphascope Transmission Technology Co., Ltd., we are committed to providing exceptional customer service and helping our partners achieve their goals. Thank you for considering rigid chain. We look forward to collaborating with you and contributing to your success.
Design Principle
Flexible Transmission Scissor Lift Table is driven by Flexible Transmission Column Lift as the lifting drive system. Upper connecting surface of Flexible Transmission Column Lift is connected to the lift table, and the drive housing is connected to the base. The horizontal movement of the chain links in the storage box is converted into vertical movement, which pushes the lift table. The chain links form a vertical rigid column that bears the vertical load to achieve vertical lifting.

Product Parameters

Model	35A Flexible Transmission Scissor Lift Table
Platform dimensions WxD (meters)	1.8 x 1.8 or customized
Load capacity (ton)	24
Stroke (meters)	8
Max. Speed (m/s)	0.25
Power supply	AC 220V/380V 50Hz/60Hz
Power (kw)	2.2~55

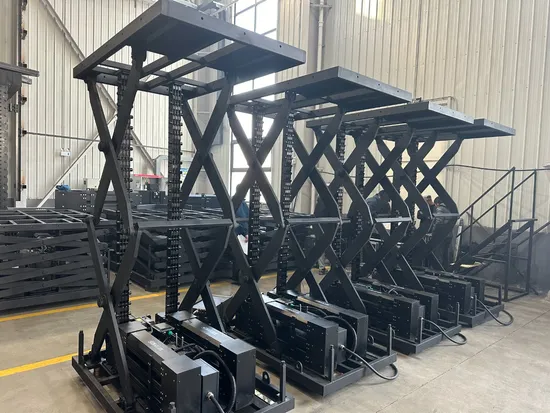

Project Photo
Why us?
1. Flexible Transmission Scissor Lift Table has obtained a national invention patent for its core lifting device-Flexible Transmission Column Lift, which solved the key technologies when the lifting platform needs to be lowered to lowest height with large stroke and heavy load. Our product has a reputation for smooth operation, accurate positioning, convenient combination of multiple lifting platforms, simple control, good synchronization performance, and high transmission efficiency.
2. Pre sales technical consultation: Based on the key parameter requirements you provide, such as stroke, load and speed, our engineers will assist in selecting and drawing to determine the most cost-effective solution.
3. Before shipment, you can come to the factory for on-site inspection or we can cooperate with real-time video inspection. After passing the inspection, we can arrange for shipment.
4. We provide free installation and debugging guidance, as well as training on operation and maintenance.
5. Warranty: One year warranty service for the entire machine.
6. 24-hour response and assist you in resolving issues ASAP.
A View of the Factory

Invention Patent Certificate

---
