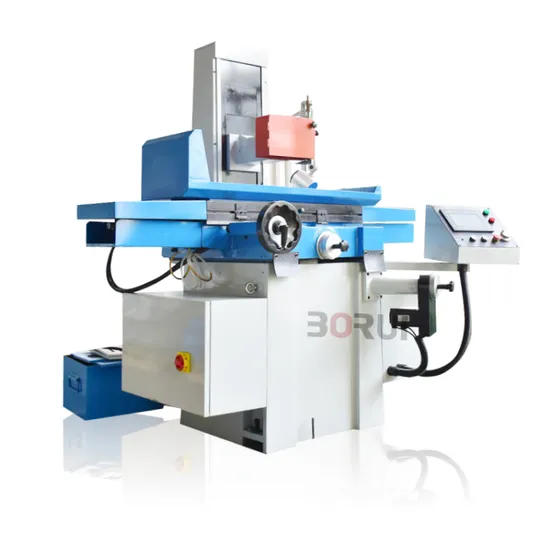

PLC Surface Grinding Machine M2550 Vertical Spindle Grinding Machine

Product Description

PLC Surface Grinding Machine M2550 Vertical Spindle Grinding Machine
Product Description
Application:
* Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
* Well-designed control panel with two-way rotate structure, make the operator getting suitable operating position very easy, improve work efficiency.
*The grinder is standard equipped with auto down feed AC servo motor, and controlled by PLC and HMI, to realize auto grinding, then to realize auto grinding.
* For the control panel is equipped with HML, by which the operator can easy operating on the machine to realize auto working.

Model	Unit	SG2550AHD/NC2/NC3
Max. workpiece to be Ground(L×W×H)	mm	520×250×240
Max.Grinding Length	mm	520
Max.Grinding width	mm	250
Distance from table surface to spindle center	mm	450
Slide way		One flat rail one V rail
Maximum work load	kg	200
Table size(L×W)	mm	520×250
Number of T-slot	mm×n	14×1
Speed of working table	m/min	18
Cross feed on handwheel	mm	0.02/Graduation 4/revolution
Vertical MPG feed	mm	0.001/0.01/0.1/Graduation 0.1/1/10/revolution
Wheel size(dia×width×bore)	mm	Ф200×20×Ф31.75
Spindle speeds	rpm	2800
The total power of electric motor	kw	4
Spindle motor	kw	1.5
The machined surface of the base of parallelism	mm	0.003
Surface roughness	μm	Ra0.32
Vertical feeding servo motor	kw	0.75
Cross feed motor of table	kw	0.06
Minimum of numerical	L	60
Coolant pump	kw	0.04
Packing size(L×W×H)	mm	1970×1350×1980
Gross,Net	T	1.2T,1.1T

M2550AHD	M2550NC2	M2550NC3
Vertical: AC servo motor	Vertical: AC servo motor	Vertical: AC servo motor
Cross: Motor	Cross: AC servo motor	Cross: AC servo motor
Longitudinal: Hydraulic	Longitudinal: Hydraulic	Longitudinal: AC servo motor
Controller: GS-PLC Touch	Controller: GS-PLC Touch	Controller: GS-PLC Touch

Details Display
Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send
us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece
drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
