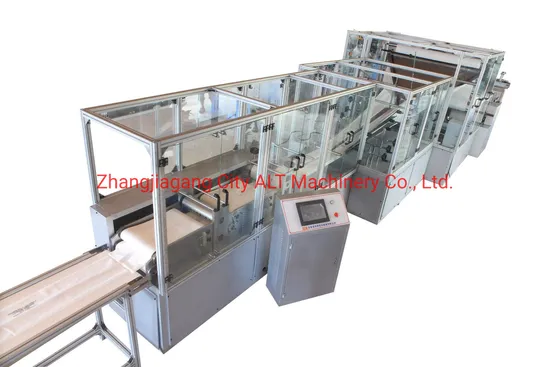

Disposable Nonwoven Folding Machine for Hospital

Product Description

Equipment Introduction Equipment requirements: The device can process all kinds of spunlace non-woven,hot air fabric, hot-rolled fabric; acupuncture cloth, spunbond fabric, SMS, paper-plastic and other raw material. The machine adopts the cylinder to promote the material and tension control automatically, without manual operation All the drives use the imported servo motor, high precision 4.. Touch screen control, only need to enter the data can change the specs, easy to operate.
5.Electronic-control is touch screen man-machine interface operation,built-in production time,counting,a preset number of automatic shutdown, etc.
Equipment configuration list:
1 Servo drive: Delta (Taiwan) 4 sets
2 Gear motors: Yongkun (Taiwan) 1set
3 PLC: Delta (Taiwan) 1set
4 Motion Controller: Delta (Taiwan) 1 set
5 Touch screen: Delta (Taiwan) 1set
6 Inverter: Delta (Taiwan) 1set
7 Low-voltage electrical: delixi 1set
8. Air Shaft: 2pcs
9 Magnetic tension controller: 1 set
Technical parameters:

Supply power	Power	Speed	Dimension(in mm)	Weight
380V50HZ	16.5KW	0-50 m / min	9000*2400* 2000	3000kg

---
