8m Length Wood Vacuum Dryer Solid Board Vacuum Drying Kiln

Product Description

XNH wood thermal modified system is independently developed by Institute of Drying Technology of Nanjing Forestry and Jiangsu XINAN Woodrying systems Co., LTD on the basis of careful study on the existing wood high temperature heat-treated equipment aboard combining with domestic technology. The equipment has rational and advanced parts, safe and reliable performance. The equipment could improve the function of wood, so finite and rare wood resource could be utilized effectively, wood resource could be fully developed as solid wood products. XNH wood thermal modified system has two structures of all-aluminum assembled kiln and carbon steel and stainless steel composite cylinder for customers to choose. Product Description

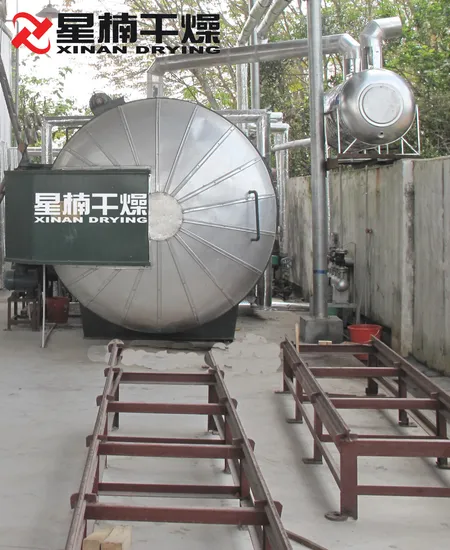

XNH All-aluminum assembled Kiln XNH Bimetallic Cylinder
XNH Main Technology Coefficient of XNH Series

Model	Capacity(m3)	Dimension of kiln(m)	Dimension of stack(m)
All-aluminum assembled kiln
XNH-TS16	16	4.5×4.4×5.0	4.0×2.4×3.2
XNH-TS18	18	4.5×4.6×5.0	4.0×2.7×3.2
XNH-TS25	25	6.6×4.4×5.0	6.0×2.4×3.2
XNH-TS28	28	6.6×4.6×5.0	6.0×2.7×3.2
XNH-TS33	33	8.6×4.4×5.0	8.0×2.4×3.2
XNH-TS35	35	8.6×4.6×5.0	8.0×2.7×3.2
carbon steel and stainless steel composite cylinder
XNH-CS4	4	φ2.2×4	4×1.2×1.5
XNH-CS6	6	φ2.2×6	6×1.2×1.5
XNH-CS8	8	φ2.2×8	8×1.2×1.5
XNH-CS15	15	φ2.8×8	8×1.8×2.0

Advantages of XNH Bimetallic Cylinder
Controlling instrument made in Deutschland, ensuring control precise and reliable
Equipped circulating device, making thermal uniform
Temperature can be adjusted between 160ºC and 220ºC according to the requirement
Two sets of pressure control system, ensuring equipment running safely
Bimetallic (Carbon steel and stainless steel) shell, having economical efficiency and ensuring intensity and durability
Be suitable for production of small batch, processing flexibly
Advantages of XNH All-aluminum Assembled Kiln
PLC control system researched and developed by XINAN, ensuring control precise and reliable
High efficiency fan, making thermal uniform
Being not only as drying system, but also as thermal modified system; Temperature can be adjusted between 160ºC and 220ºC as thermal modified system.
Unique security system.
All-aluminum alloy kiln housing, ultra-thick, penetration preventer.
Be suitable for mass production and be highly efficient.
The color of heat-treated wood at different treatment temperature

---
