Factory Customize Automatic Injection Machinery Price

Product Description

factory customize automatic injection machinery price
Product Application Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely
apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards,
medical devices, open containers, connectors, cables,auto parts, Plug ,etc.

MODEL	JY-250ST	JY-350ST	JY-500ST	JY-850ST	JY-1000ST
Screw Diameter	30mm	35mm	42mm	48mm	48mm
Max.Shot Weight	74g	106g	176g	227g	260g
Clamping Force	35Tons	45Tons	55Tons	85Tons	120Tons
Opening troke	180mm	200mm	200mm	255mm	300mm
Ejector Force	1.3Tons	1.76Tons	1.76Tons	2.1Tons	4.8Tons
Ejector Stoke	35mm	35mm	35mm	45mm	45mm
Oil Resservoir Capacity	100L	130L	150L	180L	200L
Pump Motor Power	3.75KW/5.5HP	5.5KW/7.5HP	7.5KW/10HP	11KW/15Hp	14.5KW/22HP
Power	6.3KW	9KW	12KW	16KW	20KW
Machine Weight	1.5Tons	2.4Tons	3.0Tons	5Tons	6.8Tons
Machine Dimensions(LxWxH)	1.55x0.93x2.45m	1.7x1.2x3.0m	1.85x1.2x3.0m	2.0x1.3x3.2m	2.0x1.4x4.1m
Shipping Weight	1.8Tons	2.7Tons	3.4Tons	5.4Tons	7.2Tons
Shipping Measurment(LxWxH)	1.76x1.15x2.3m	1.92x1.3x2.3m	2.1x1.4x2.3m	2.2x1.4x2.5m	2.2x1.6x2.8m

Main Features 1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to
confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment
for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.

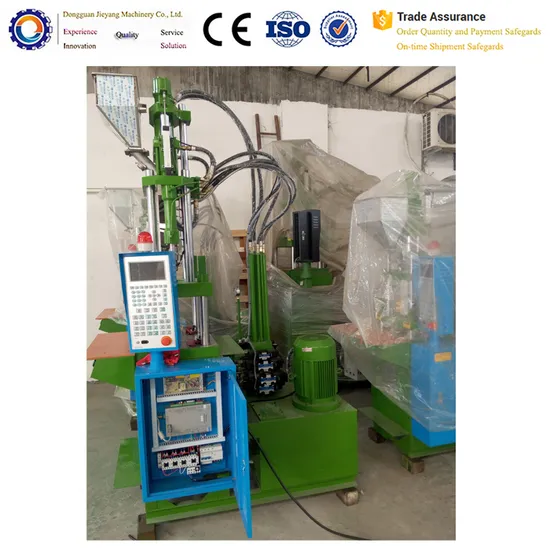

Details photos:

Machine Main Products:
Youtube Vedio:
European Plug:https://youtu.be/xtM1aSLv9uw
South Africa Plug:https://youtu.be/4TSYylWwO7M
USB Cable:https://youtu.be/rReF6ysrMvE https://youtu.be/pDyWrFNPxjI
Mac wire: https://youtu.be/rReF6ysrMvE
DC wire:https://youtu.be/t5V6N71EQcQ
Network wire:https://youtu.be/iuxdJ8pjqh0
If you have any questions, please feel free to contact with me !

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

Welcome to inquiry us !

---
