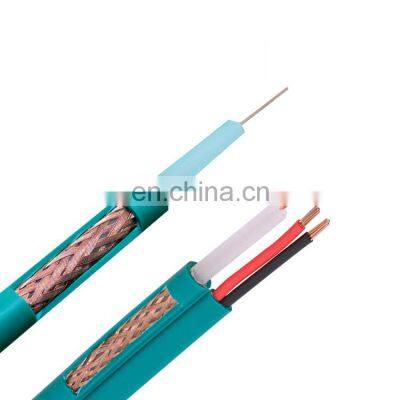

YUXUN CCTV Camera KX6 KX7 + 2 Power Coaxial Cable

Product Description

Product Description
YUXUN CCTV Camera KX6 KX7 + 2 Power Coaxial Cable Product Description

KX6 Coaxial 75Ohm Cable

Physical Dimensions
Inner Conductor	COND.MATERIAL	Bare Copper
Inner Conductor	CONSTRUCTION	7/0.2±0.003mm
Insulation1	DIAMETER	Solided-PE
Insulation1	MATERIAL	3.7± 0.1mm
Shield	BRAIDING MATERIAL	CCAM
Shield	BRAID CONSTRUCTION	96/0.12±0.005mm
Jacket	DIAMETER	PVC
	MATERIAL	6.1±0.20mm
	COLOR	Green
ELECTRICAL CHARACTERISTICS
Impedance	75Ohm±3
Nominal Capacitance(pF/m)	67
Propagation velocity ration	66%
Insulation resitance	≥1000MΩ/km
ATTENUATION at 20℃ (≤dB/100m)	10MHz	3.80
	50MHz	8.30
	100MHz	11.80
	200MHz	17.00
	500MHz	27.10
	800MHz	35.70
	1000MHz	41.50

Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.

Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
