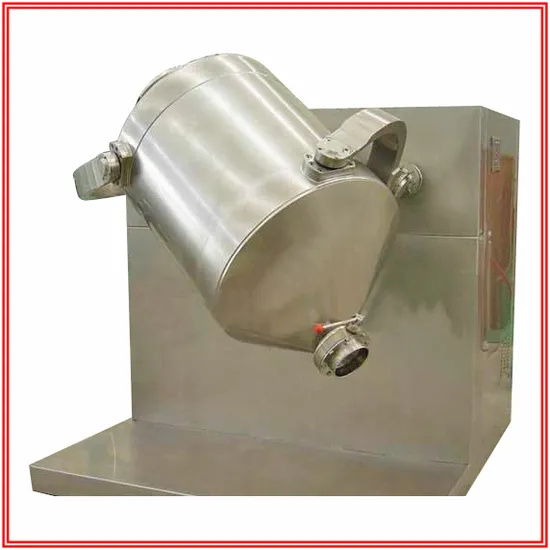

High Efficient Mixer for Fertilizer Element

US$7,480.00 1 Piece (MOQ)

Basic Info.

Model NO.

SYH

Certification

CE, ISO, GOST, SONCAP, CCC, API

Condition

New

Mixing Drum Shape

Drum

Stirring Type

Gravity

Working

High Speed Mixer

Name

Barrel Mixer

Other Name

Motion Mixer

Material

Stainless Steel

Industry of Application

Checmial or Pharma Powder

Mixer Type

Powder Mixer

Layout Type

Horizontal

Operating type

Cycle Operating

Transport Package

Wooden Case

Specification

CE SGS SONCAP

Trademark

Origin

China

HS Code

8479820090

Production Capacity

200sets Per Month

Product Description

Characteristics
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
Technical Parameter

Spec	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1200	SYH-1500	SYH-2000
volume of barrel(L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
charge volume(L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
charge weight(kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
rotation speed of main shaft(r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
motor power(kw)	0.25	0.37	1.1	1.5	2.5	4	5.5	7.5	11	11	15	18.5
size L×W×H(mm)	600 ×1000 ×1000	800 ×1200 ×1000	1150 ×1400 ×1000	1250 ×1800 ×1550	1450 ×2000 ×1550	1650 ×2200 ×1550	1850 ×2500 ×1750	2100 ×2650 ×2000	2150 ×2800 ×2100	2000 ×3000 ×2260	2300 ×3200 ×2500	2500 ×3500 ×2800
weight(kg)	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000

The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
