Industrial Trash Discharge Mud Gravel Mines Ash Sewage Sand Centrifugal Slurry Pump

Product Description

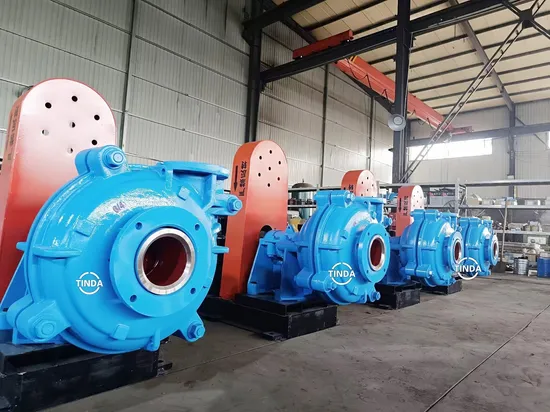

TH Heavy-Duty Slurry Pumps
Model: TH
Drvie Type: ZVz/CRz/CV/DC
Power: Motor, Diesel
Size: 1" to 18" ( 25mm to 450 mm)
Max Capacity: 22,000 gpm (5,000 m3/h)
Max Head: 240ft (73m)
1.Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Interchangeable anti-abrasive wet parts made of high-chrome alloys;
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
TH Series centrifugal horizontal heavy duty slurry pumps are designed for the continuous pumping of highly abrasive, dense slurries in processes from hydrocyclone feed to regrind, flotation and tailings. TH Series slurry pumps using for handing strong abrasive, high density slurries, high head slurries in the mining, metallurgical, coal, power, building material and other industrial departments.
Main material:
Cr27,Cr28,CD4MCu, etc.
Material advantage:
High chromium alloy, more wear-resistant!
We have foundry workshop, processing workshop and assembly workshop. All the costs you pay will be invested in better metal materials. The materials are not falsely labeled and the quality is better, which can really save you money. Real factory! Quality system certification, reputation certification!
Main Parts:
IMPELLER,LINER,STUFFING BOX,EXPELLER SEAL, VOLUTE,CASING,BEARING ASSEMBLY,PUMP BASE, etc.
Advantage:
1. It can be used in various working conditions and is the most commonly used product.
2. Highly wear-resistant, with a hardness of more than 60.
3. Spare parts are standardized and easy to purchase.
Better materials plus precise processing, everything is for higher quality! ------ Specifications and Performance ------

TYPE	Material		Allowable Max.	Clear Water Performance					Impeller
	Liner	Impeller	Power	Capacity Q		Head	Speed	Max	Impeller Diameter
			P(Kw)			H(m)	N(rpm)	Efficiency	D(mm)
				m³/h	l/s			η(%)
1.5/1 B-TH	M	M	15	12.6--28.8	3.5-8	6--68	1200--3800	40	152
	RU	RU		10.8--25.5	3-7	7--52	1400--3400	35
2/1.5 B-TH	M	M	15	32.4--72	9-20	6--58	1200--3200	45	184
	RU	RU		25.2--54	7-15	5.5--41	1000--2600	50	178
3/2 C-TH	M	M	30	39.6--86.4	11-24	12--64	1300--2700	55	214
	RU	RU		36--75.6	10-21	13--46	1300--2300	60	213
4/3 C-TH	M	M	30	86.4--198	24-25	9--52	1000--2200	71	245
	RU	RU		79.2--180	22-50	5--34.5	800--1800	59
6/4 D-TH	M	M	60	162--360	40-100	12--56	800--1550	65	365
	RU	RU		144--324	40-90	12--45	800--1350	65
8/6 R-TH	M	M	300	360--828	100-230	10--61	500--1140	72	510
	RU	RU		324--720	90-200	7--49	400--1000	65
10/8 ST-TH	M	M	560	612--1368	170-380	11--61	400--850	71	686
	RU	RU		540--1188	150-330	12--50	400--750	75
12/10 ST-TH	M	M	560	936--1980	260-550	7--68	300--800	82	762
	RU	RU		720--1620	200-450	7--45	300--650	80
14/12 ST-TH	M	M	560	1260--2772	350-770	13--63	300--600	77	965
	RU	RU		1152--2520	320-700	13--44	300--500	79
16/14 TU-TH	M	M	1200	1368--3060	380-850	11--63	250--550	79	1067
20/18 TU-TH	M	M	1200	2520--5400	700-1500	13--57	200--400	85	1370

Note:1.For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us. 2. "M" stands for alloy wear-resistant material, "RU" stands for rubber material.

More transmission mode
Application and ReferenceSeries
TH slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.
Typical Applications
1. Coal washing plants
2. Mining
3. Oil and gas
4. Sand and gravel plants
5. Dredging for mineral sands
6. Ash handling facilities attached to power stations
Looking for other pumps? Click below
The spirit of craftsmanship
We take every product seriously and make every one perfect!------ Abundant inventory, quick response to delivery ------
------ Packaging and transportation ------

---
