•High accuracy of voltage and frequency regulating with fast reponse time.
•Pure and stable sinewave output, withstands all kinds of load.

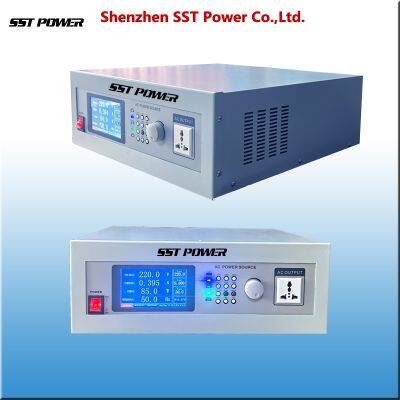

| FC11 One Phase Variable Voltage & Frequency Converter |
| Item | FC11 |
| Power Rating（KVA） | 0.5K | 1K | 2K | 3K | 5K | 10K | 15K | 20K | 30K | 50K | 60K |
| Control Method | IGBT/PWM (Pulse Width Modulation) |
| Input |
| Rated Voltage | 1P2W+G 220V |
| Voltage Range | ±10% |
| Frequency | 50Hz(47Hz～63Hz) |
| Output |
| Rated Voltage | Low Grade: 0-150V ; High Grade: 0-300V |
| Limit Current Low Grade(L-N)(A) | 4 | 8 | 17 | 25 | 42 | 83 | 125 | 167 | 250 | 417 | 500 |
| Limit Current High Grade(L-N)(A) | 2 | 4 | 8 | 13 | 21 | 42 | 63 | 83 | 125 | 208 | 250 |
| Source Voltage Regulation | ≤±1% |
| Load Voltage Regulation | ≤±1% |
| Power Factor | PF≥0.8 |
| Frequency | 50/60Hz(40.0～499.9HZ (Programmable) |
| Frequency Stability | ≤0.01% |
| Wave distortion | ﹤2% |
| Efficiency | ≥90% |
| Reponse time | ≤2ms |
| Crest Factor | 3:01:00 |
| System Protection | Overload, over voltage, over current, under voltage, over temperature, short circuit |
| LED Display |
| Voltmeter | 4 Digital LED display for output voltage, resolution 0.1V |
| Ammeter | 4 Digital LED display for output current, resolution 0.1A |
| Wattmeter | 4 Digital LED display for output power, resolution 0.1W/0.1KW |
| Frequency Meter | 4 Digital LED display for output frequency, resolution 0.1Hz/Step |
| Others |
| Cooling System | Air |
| Insulation Resistance | ≥2MΩ |
| Voltage-endurance | The whole machine has no breakdown and no arcing phenomena for 2000VAC/ min. |
| Working Environment |
| Ambient Temperature | 0℃-45℃( No condensation ) |
| Working Humidity | 0℅-90℅( No condensation ) |
| Altitude | ≤1500m |
| Dimension |
| Size WxDxH(mm) | 430×500×180 | 350×530×660 | 350×650×860 | 550×750×1100 | 700×900×1300 |
| Net Weight (KG ) | 25 | 29 | 40 | 70 | 75 | 120 | 138 | 180 | 270 | 380 | 400 |
| Gross Weight (KG ) | 31 | 35 | 46 | 76 | 80 | 132 | 180 | 200 | 300 | 400 | 420 |
| Product specifications are subject to change without further notice. |
