Economical Metal Tube Laser Cutting Machine Excellent Laser Tube Cutting Machine High Speed Laser Cutting Machine for Tubes

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of an Economical Pipe metal Cutting Machine:

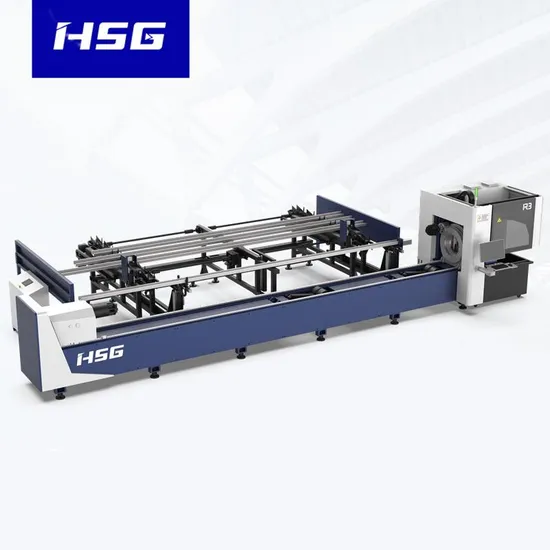

Economical Tube Laser Cutting Machine 1500W-4000W
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory.
All testing results and experimental data shall be subject to real machine.
Basic Information
Economical Model
Small size and small occupied area, improving the utilization of workshop.
Shipped in a 40HQ standard container with no need for metal plate removal.

HSG-X9000 Bus CNC System
KLINGE Autofocus Cutting Head
KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring,
double focusing protective lens, drawer-type pluggable protective lens, focusing and collimating lens.
Self-developed by HSG LASER

Autofocus accuracy ±0.01mm

Flow control for mirror-like surface cutting

Prevent spark splashing and scalds by SS protective pipes

Double Pneumatic Chucks
Detecting sensor for front and rear chuck opening & clamping, preventing possible collision.
Function of front chuck ventilation, for dust prevention from entry into chucks.
Front chuck avoidance cutting.


Specification
Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.
Technical Parameter

Model	R3	R3 PLUS
Power	1500-4000W
X/Y-axis Positioning Accuracy	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm
No-load Speed	90m/min
Acceleration	0.8G
Rotating Speed of Chucks	90r/min
Cutting Capacity of Round Tube	20-220mm	20-325mm
Cutting Capacity of Square Tube	20*20mm-150*150mm	20*20-230*230mm
Length of Tube	6000mm
Weight of Single Tube	150kg	200kg
Tailing	85mm
Overall Dimensions (L*W*H)	10000*4500*2350mm	10160*4600*2350mm
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.

Sample Display


Visit & Exhibition


Packaging & Shipping

1. Our high-standard package include aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, in order to satisfy ocean shipping criteria.
2. We will ensure they can be delivered to customers ASAP. withour damage.

3. We also support a variety of transportation methods.

---
