Automatic High Speed Hot Chamber Die Casting Machinery Vertical Type Zipper Slider Zinc Alloy Metal Hardware Molding Machinery 10t

Product Description

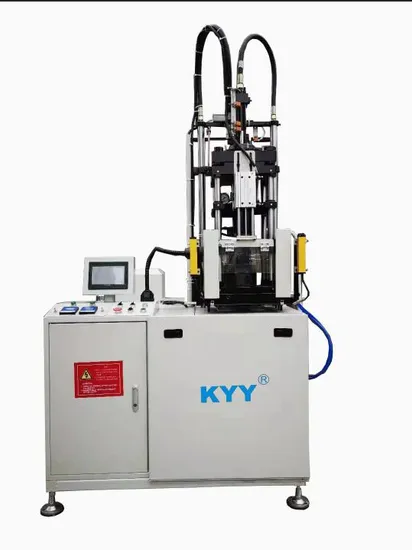

Automatic High Speed Hot Chamber Die Casting Machinery Vertical Type Molding Machinery 10T
Machine Specifications :
Full Automatic High Speed Hot Chamber Die Casting Machine
Locking force: 100kn
Tie-bar diameter: 32mm
Die stroke: 100mm
Distance between tie-bar(horizontal*vertical): 220*200mm
Die height(min-max): 110-150mm
Injection force(max): 12kn
Plunger stroke: 50mm
Plunger diameter: 32mm
Injection pressure:15MPa
Maximum molding area: 68cm2
(Zn) Effective shot weight: 0.125kg
Shotting position: center
Traverse stroke: 190mm
Ejection force: 2.4kn
Dry cycle time: 2.5sec
Flow rate of pump: 23L/min
Working oil-pressure: 5MPa
Output of pump motor: 4/6kw/p
Melting pot capacity(Zn): 70kg
Accumulator capacity: 6.3L
Oil tank capacity: 150L
Furnace fuel consumption: 1.5kg/h
Input of furnace heating: 10.5kw
Input of nozzle heating : 1kw
Machine dimension: 1200*1200*2200mm
Machine net weight: 1.3t

Zhejiang Longqi Science and Technology Group with five subsidiaries is a collection of production, research and development, sales as one of the diversified developing enterprise. Zhejiang Longqi Science and Technology Group Wenzhou Jinghong International Trade Co., Ltd is one of the subsidiaries.
We have 3 main brands, KKK, KYY and KIKI. Our company produces all kinds of zipper slider parts, Metal,nylon,plastic full-auto zipper pre-processing, latter equipment, auxiliary equipment, to meet the different needs of different customers. We also produce all kinds of clothing accessories and luggage bag accessories, zipper slider equipment and various equipment accessories.There are all kinds of zipper sliders, bag zipper slider universal assembly machine, universal assembly machine for bag zipper slider and keyhole, special die casting machine for zipper sliders, straight shrapnel capping machine, automatic rolling and returning material machine, automatic assembly machine for invisible puller, spring head assembly machine, automatic assembly machine for bag zipper sliders, automatic assembly machine for spring fastener, barrel polishing machine, paint spraying machine, polishing machine grinding machine, etc., can also be customized.
https://kyyzipper.en.made-in-china.com/
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .In order to get more orders and give our clients more convenience ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

---
