X5036 China Low Cost Vertical Knee Type Heavy Duty Vertical Milling Machine

Product Description

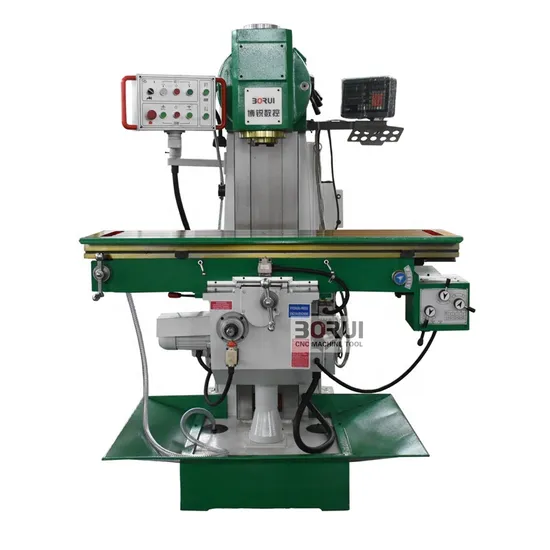

X5036 China Low Cost Vertical Knee Type Heavy Duty Vertical Milling Machine
Product Application
Model X5036 Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, Cutter, helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ±45°, Spindle quill can be moved in vertical.The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. It has the large working table, a set of cantilever for electric button and a longitudinal handwheel in front of the table, So the machine can be easy to operate. Working table and slide ways adopted quality cast hardened ensure high accuracy.
The main specification :

SPECIFICATIONS OF VERTICAL KNEE TYPE MILLING MACHINE X5036
Main specification	Units	X5036
Table size	mm	360X1600
T slots (N×W×D)	mm	3X18X80
Table Load-bearing	Kg	550
Longitudinal travel (Manual/Power) X	mm	1020/1000
Cross travel (Manual/Power) Y	mm	300/280
Vertical travel (Manual/Power) Z	mm	410/400
Feed speed steps		18 Steps
Feed speed ranges: Longitudinal X	mm/min	15-750
Cross Y	mm/min	15-750
Vertical Z	mm/min	5.7-280
Rapid feed ranges: Longitudinal X	mm/min	2250
Cross Y	mm/min	2250
Vertical Z	mm/min	844
Distance between table center to vertical guide way	mm	235~535
Arbor diameter	mm	φ32 φ40
Min. distance from spindle nose to table	mm	50-460
Spindle quill travel	mm	75
Distance between vertical guide way to spindle center	mm	380
Max. rotary angle of the vertical milling head		±45°
Spindle hole taper	mm	7:24 50#
Diameter of spindle hole	mm	φ29
Spindle speed steps		18Steps
Spindle speed ranges	r/min	30-1500
Main motor power	kW	7.5
Feed motor power	kW	1.5
Cooling pump power	kW	0.12
Overall size	mm	2307X2067X2096
Packing box size	mm	2240X2070X2250
Net weight	Kg	3370

Standard Accessories
Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor φ32, φ50
Foundation bolts and nuts

Optional Accessories
2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
Slotting head The main feature :
1.X5036A vertical milling machine body adopts advanced cast iron, the high precision, long life after the artificial aging treatment
2.X5036A vertical milling machine spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability.
3.X5036A vertical milling machine X, Y to the control of the machine tool by box type, can achieve automatic feeding, Z to the use of motor automatic lift.
4.X5036A vertical milling machine X, Y, Z three direction of the guide rail hardening, precision grinding. Plastic slide
After the motion precision and life and taste
5.Equipped with manual lubrication device can be used to guide screw and guide rail.
6.X5036B vertical milling machine is a kind of common metal cutting tools. This tool spindle cone can be directly or through the attachment of cylindrical milling, installation, end milling cutters, Angle cutter knives, applicable to such processing various parts of the plane, cant, groove, holes etc, machinery manufacturing, mould, instrument and meter, automobile, motorcycle industries ideal processing equipment.
Product Dtails

Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
