US$13,000.00-20,000.00
|
1 SET
(MOQ)
|
Basic Info.
Use of Occasions
Indoor Type
Width of Stair
600-1200 mm
Step Road Linetype
Linear
Product Price
$ 10000-30000/Unit
Production Time
Within 25-30 Days
Transport Package
High Quality Export Wooden Case
Product Description
Escalator
It travels as easily as walking on firm earth by concise and pragmatic charm
It is widely applicable for various concentrated passengerflow areas such as big shopping centers,aviation ports,shopping malls,recreation centers,public facilities etc.
Compact,flexible and relaxing structure

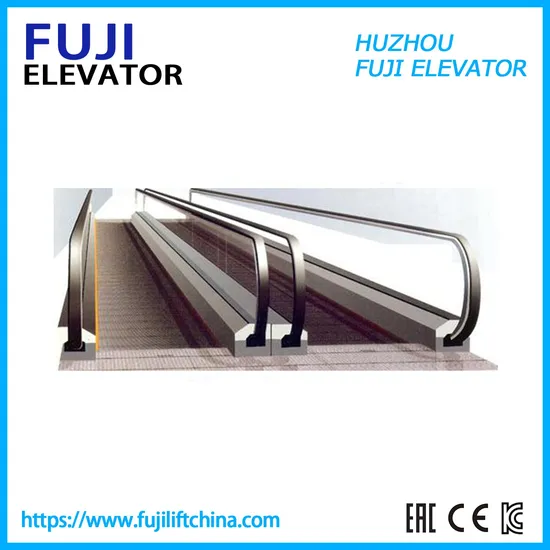

The moving walk size has been reduced due to the compact design of guiderail pre-mounting technology.mechanical system and handrail drive system of FUJI moving walk.it thus effectively utilizes the building space
| Installation Environment: | Indoor and Outdoor |
| Layout | According to Construction plans |
| Travel Height | H≤20000mm |
| Step width (mm) | 600, 800, 1000, 1200 |
| Up-down horizontal step | 2/2(35°) , 3/3(30°) |
| Angle of inclination | 35°, 30° |
| Operating speed | 0.5m/s,1.0m/s |
| Start method | VVVF , VVVF+Autostart |
| Step | Stainless steel, Aluminum (standard for outdoor) |
| Color | Natural color, Black |
| Capacity (persons/h) | 4500, 6700, 9000 |
| Step cordon | Yellow paint |
| Driver Traction machine | Worm And Gear |
| Motor protection level | IP 21, IP54 |
| Power Supply | Motor Power: 380V±7%, 50Hz Three Phase Five Wire System Lighting Power: 220V, 50Hz, Single Phase |
| Truss | Angle |
| Installation length | Standard |
| Truss process | Paint process(colour TK005),Hot-dip Galvanizing |
Use of safety hairbrush for escalators:
used in major markets, shopping malls or subway entrances, installed on both sides of the lower part of the escalator, to prevent potential safety hazards caused by tying objects or shoelaces between the escalator steps and the side panels of the skirt.
Escalator clamping device:
1. Increase the position of the safety brush in conformity with the requirements of national standards and other positions such as steps
2. The bending is treated as same as the radian of the side board. And ensure that the distance with the steps meet the requirements of national standards
3. Gently process the ends of each brush. Add brush stop
4. Ensure sufficient strength during installation, and the total length of the brush top and the side board of escalator meets the standards
5. The base of the brush and the brush shall meet the standard inclination
>>
