Small Automatic 20m3/H Drum Mixer Mobile Concrete Batching Plant

Product Description

YHZM full-automatic mobile concrete batching plant
The drum mobile concrete mixing plant is a concrete production equipment that integrates the material storage,weighing, conveying,mixing,unloading and automatic control systems of the concrete mixing plant into a trailer unit.Suitable for roads,DAM, Bridges,commercial and residential projects.

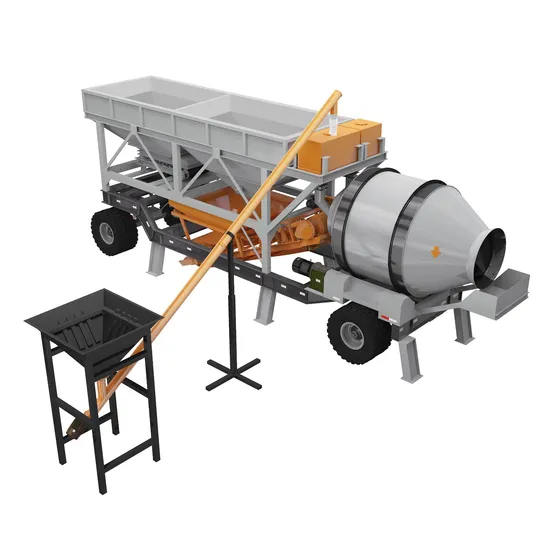

Drum Mobile Concrete Batching Plant
1.Quickly mix the concrete mixture evenly,compared with ordinary mobile batching and mixing plant, it has a compact structure 2.Drum type batching plant installations are very easy to use and maintain on site
3.Easy to move the machine as the plant comes with mobility and towing arrangement
4.Cheaper than the ordinary one which can help save customers budgets
5.Digital load cell basedweighing of cement and aggregate while water and additive is based on timer based accurate discharge system
Product Details

Aggregate batching machine

Drum concrete mixer

Mobile chassis

Weighing system

Product Parameters

Model			YHZM25-2	YHZM35-3	YHZM50-3	YHZM75-3	YHZM100-4
Theory capacity		m³/h	25	35	50	75	100
Discharging height		mm	1300
Total power		kw	42	46	60	67	77.5
Total weight		T	12	13	14	15	26
Mixing System	Model of Mixer		JZM500	JZM750	JZM1000	JZM1500	JZM2000
	Mixing motor	kw	4.5KW*2	5.5KW*2	11KW*2	11KW*2	15KW*2
	Discharging volume	L	500	750	1000	1500	2000
Aggregate System	Model of Batcher		PLD800-2	PLD1200-3	PLD1600-3	PLD2400-3	PLD3200-4
	Aggregate Storage		4m³×2	5.5m³×3	6m³×3	8.5m³×3	14m³×4
	Max. Aggregate Dia	mm	60/80
Measurement System	Cement weighing	kg	500	500	560	900	1200
	Water weighing	kg	220	220	220	330	400
	Additive weighing	kg	30	30	30	40	50
Trailer Speed		Km/h	40-60	40-60	40-60	40-60	40-60
Optional cement silo		T	50/100	50/100	50/100	50/100	50/100

Company Profile
HENAN HENGYUAN CO.,LTD.
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete batching plant,concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City,Henan province.Our factory is located in Xingyang,Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan Iproducts have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan,Russia,Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
Certifications
Customer Visiting
Packaging & Shipping
Successful case

FAQ
Q1:Are you trading company or a source factory? We are factory.We mainly design and manufacture concrete equipment (concrete batching plant, concrete pump) Q2:What are the terms of payment in your formal trade? Normally we can work on T/T term T/T:30%T/T prepayment , 70% paid by T/T before delivery. Q3:What about the delivery time? Usually 15-20 days after receving the deposit. Q4:What's your after-sale service? 18 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well. Q5:What should I do if I experience a problem on our equipment? You could email us the photos to show what happens or call us.Also on-site technician service available as request.

---
