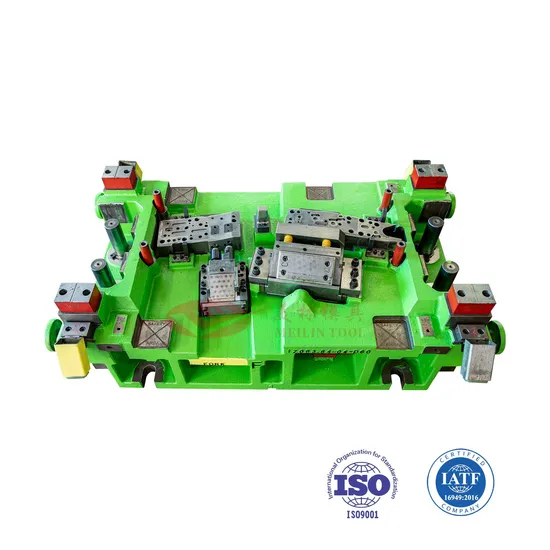

Professional Automotive Frame Production Tools, Hardware, Aluminum Stamping Dies

Product Description

Professional Automotive Frame Production Tools, Hardware, Aluminum Stamping Dies Product Description

Tooling Type	Full Progressive Completed/Continuous Die, Single Process Stamping Die , Compound Stamping Die
Lifecycle	Deepends on customer's production capactity.
First Trial	25-45 days after mold drawing confirmed.
Standard	ISO9001, IAFT 16949
Hold Tolerance	± 0.1
Material	S50C, SKD11, HMD5, etc
Parts Detection Method	Measurement of Three Axis NC
Surface Treatment	Chromium Plating, TD, Polishing, Paint Spraying
Quality Confirm	Provide strip layout of die, Checking fixture, testing video, inspection certificate and sample of product

Detailed Photos

Company Profile
-Automotive tooling,max progressive is 1600T, TRF 3000T.
-Material grade
Steel from 350mpa, 450mpa to 600mpa, and high strength tensile from 800mpa, 1000mpa to 1200mpa.
Aluminum material grade from 5 series, 6 series high to 7 series.
-Material thickness from 0.4mm to 6.0mm.
Meilin Tool&Die has a superior geographical location and convenient transportation. There are two highway entrances within a 5000 meter radius, and two international airports and ports within a 70 kilometer radius.
Meilin's technological strength and geographical location have laid a solid foundation for meeting customer needs.
FAQ
Q: Are you a manufacturer or trading company?
A: Meilin is the one-stop metal die manufacturer with 24 years mould design experience and manufacturing capability .
Q: What is your company need before to submit a quotation?A: 2D/3D CAD files , and provide the following information, such as material, monthly output, process requirements, surface treatment, equipment requirements, required precision, packing requirement etc.
Because most of products are customized products of customers, we need customers to provide as detailed product information as possible, so that we can provide accurate quotation and product services.Q: What is the free quantity of mold test sample? A: We offer 50 or 100 free production sample services. Customers can choose to have us produce 50 or 100 samples for free at any precision stage.(The materials are provided by the customer)

---
