Basic Info.
Customized
Non-Customized
Automatic Grade
Automatic
V Guide
K6 K8 K10 K13 K17
Transport Package
Wooden Case
Production Capacity
300PCS/Month
Product Description

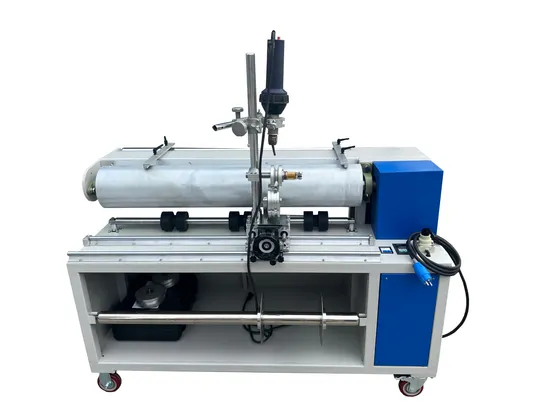

Bayrich Conveyor belt V guide welding machine
★Detail: Guide machine is made of frame, motor, frequency inverter, anititive roller, press pulley,guide pulley, worktable, welding machine etc.
★Features:
1. High working efficiency , about 8m/min ;
2. For different guide, use different mould , standard with machine size is 6×4 8×5 10×6 and 13×8, others can make accords to your requirements, like 17×11 ,12*24 etc.;
3. Can use for endless belt;
4. High quality frequency inverter , easy to change the working speed ;
5. Grinding head is optional, for welding on fabric side use ;
6. Wheel- base design, machine can be moved easily;
★Technical Datasheet
| Model | WG1000 |
| Working Roller Width | 1000mm |
| Max.Working Speed | 8m/min |
| Max.Belt Width | 2000mm(with extension frame) |
| Max.Belt Thickness | 0~10mm |
| Power | 550W |
| Voltage | 1PH 220V |
| N.W. | 160KG |
| Machine Dimension | 1450*820*1150mm |
| G.W. | 200KG |
| Packing Dimension | 1600*930*1230mm |
★Machine Detail
| |
| Barometer and Power | Speed Controller and Air valve switch |
| |
| Welding Gun Holder | Guide mould (6*4, 8*5, 10*6, 13*8) |
| |
| Welding Gun Holder and Grinding Machine | Belt Block---Make sure the belt runs straight |
★Accessories Part for Free
| |
| Adjustable positioning handle--4pcs | Guide Mould-2pcs (6*4, 8*5, 10*6, 13*8),,if you need others,please contact sales. |
| |
| Welding Gun Holder--1pcs | |
★Optional Accessories
| Grinding device -- In order to allow the guide bar to be welded on the Belt Bottom , the fabric layer needs to be grinded first. |
| Guide Mold--17*11,12*12,10*10,25*25 etc. |
| Welding Gun--1600W |
| 1meter Extension Frame -- contact with the machine to let the machine can be used for 2meter belts . Pls contact us to see the working video.
|
★Bayrich have verious conveyor belt fabrication machine .Welcome to contact with us.
★Bayrich air cooled press machine in verious industry .
★Bayrich Machine ship to all over the word
>>
