Product Details
Product Description
Product Description

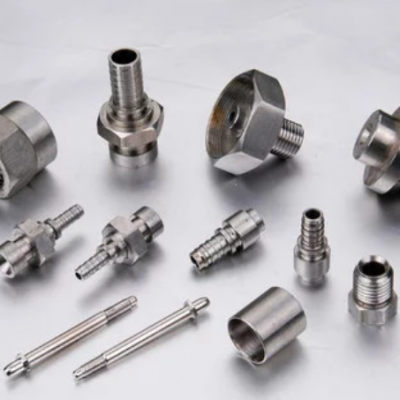

Hydraulic Fittings
Hydraulic fittings are components used to connect hydraulic hoses, tubes, and pipes in hydraulic systems. They play a crucial role in ensuring leak-free connections and proper fluid transfer within hydraulic machinery and equipment.
Here are some key aspects of hydraulic fittingsTypes of Hydraulic Fittings:
Threaded Fittings: These fittings have threads on their ends that screw into compatible ports or connectors.
Flared Fittings: Used with tubing, these fittings have a conical flare at the end that mates with a matching cone on the fitting body..
Crimp Fittings: Typically used with hoses, these fittings require a crimping tool to compress a ferrule around the hose and fitting to create a secure seal.
Push-to-Connect FittingsThese fittings allow for quick assembly without the need for tools, using features like O-rings or gripping mechanisms to seal and secure connections.
Materials:
Hydraulic fittings are commonly made from materials such as steel, stainless steel, brass, and aluminum, chosen based on factors like strength, corrosion resistance, and compatibility with hydraulic fluids
Sealing Mechanisms:
Depending on the type of fitting, sealing can be achieved through threads (using O-rings or thread sealants), compression (as in flare fittings), or mechanical grip (as in push-to-connect fittings).
Applications:
Hydraulic fittings are used in a wide range of applications across industries including construction, agriculture, automotive, and manufacturing. They are essential for connecting hydraulic hoses and tubes in equipment such as loaders, excavators, presses, and hydraulic power units.
Standards:
Fittings must often adhere to specific standards (e.g., SAE, ISO) to ensure compatibility and performance across different hydraulic systems and components.
Maintenance and Considerations:
Proper installation and maintenance of hydraulic fittings are critical to prevent leaks and ensure system reliability. Regular inspection for wear, damage, or loosening is important.
Understanding the type of hydraulic fitting needed for a particular application involves considerations of pressure ratings, fluid compatibility, environmental conditions, and ease of assembly. Choosing the right fitting ensures efficient operation and longevity of hydraulic systems.
What Are Crimp Fittings?
Crimp fittings are permanently attached end connection for hydraulic and industrial hoses conveying fluid or gases. Crimp fittings are known as crimp-on fittings, swage, and hydraulic hose fittings and they are utilized for pressure applications where a permanent connection is required for pressure ratings from 0 to 10,000 PSI. They are attached using hydraulic crimping presses known as crimpers to compress the fitting onto the hose, leaving a permanently attached end connection.
place of origin , China
warranty 1 year
customized support OEM, ODM
brand name QR
Connectivity Threaded
Product name Double union compression tee adaptor
Keyword Compression tube fitting
Size 1/16"~ 2"
Body material SS304/SS316/SS316L
Connection method NPT, BSPP, BSPT
Working Pressure 6000psi
Surface treatment CNC machine
Working Temperature 325℉~800℉ (-198℃~426℃)
Application Oil,gas,water
Product Type:
| High Pressure Elbow
|
Materia:
| stainless steel,carbon steel,Alloy Steel
|
Thread:
| 1.ASME B1.20.1, 2. BS21(NPT),3. BSP/BSPP,4. DIN259/2999,5. ISO228/1 ISO7/1, 6. JIS 130202/130203
|
|
|
Pressure rate:
| 2000lb 3000lb 6000lb 9000lb SCH80,XS,SCH160,XXS
|
|
|
Packing:
| Standard export shipping package,or as required.
|
|
Connection Type:
| Socket Weld ,Thread
|
|
|
Size:
| DN6-DN100
|
Factory Wholesale 3000lb 3# SS 90 Degree High Pressure Fitting Set Female Thread fitting Pipe Elbow NPT BSPT Thread adapters
Factory Wholesale 3000lb 3# SS 90 Degree High Pressure Fitting Set Female Thread fitting Pipe Elbow NPT BSPT Thread adapters
ASME B31.3 Customized spool flange-flange SS/Nickel Alloy pipe fabrication elbow flange spool end pipe spool prefabrication
ASME B31.3 Customized spool flange-flange SS/Nickel Alloy pipe fabrication elbow flange spool end pipe spool prefabrication
Pipe spools are fabricated from a number of raw pipes and pipe fittings (e.g. elbows, flanges, tees, etc.) in fabrication shops. Raw pipes are cut to the required sizes and moved with pipe fittings to a fitting table, where some of the components are fitted together (i.e. temporarily connected). The resulting sub-assembly (part of the final pipe spool) continues with welding operations (i.e. permanent connected) before it comes back to the fitting table and gets fitted with other spool components.
>>
