280kg 600lbs 12V Glass Door Lock System Gate Lock Electromagnetic Door Lock with Signal Buzzer Electric Magnetic Lock

US$16.00-18.90 1 Piece (MOQ)

Basic Info.

Model NO.
NE-280S(buzzer) Electromagnetic lock
Material
Zinc Alloy
Type
Electronic
Style
Modern
Shape
Rectangle
Anti-theft Standard
A
Part
Lock
Backset
Unlimited
Door Thickness Fits
No Size Limit
Lock Cylinder Length
Without
Usage
Household Door Locks, Channel Lock, Gate Door Lock;Garage Door Lock
Holding Force
280kg/600lbs
Lock Status Indicator
Red and Green, Double Color LED
Red and Green, Double Color LED
No,Nc,COM
Rated Operating Voltage
12/24VDC
Optional Functions
Relock Delay Timer,Buzzer
Surface Finish for Magnet
Zinc Plated
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L X W X D)
250lx48wx25h(mm)
Armature Plate Dimensions(L X W X D)
180L*38W*11h(mm)
Weight in Kg
2.0kg
CE/RoHS-Mark for Building
Yes
Transport Package
Standard CTN
Specification
250L*48W*25H(mm)
Trademark
NORDSON
Origin
Guangdong Province, China
Production Capacity
50000

Packaging & Delivery

Package Size
29.00cm * 28.00cm * 21.00cm
Package Gross Weight
23.900kg

Product Description

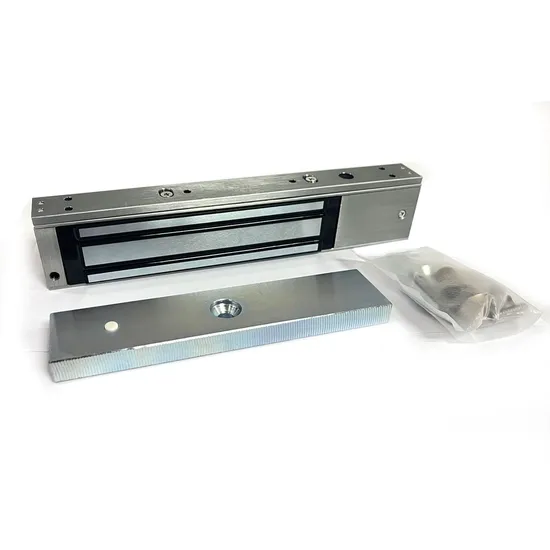

600lbs Single Door Stable Holding Force Electromagnetic lock with Signal and Buzzer Overview:
NE-280S(Buzzer),single door magnetic lock, With Buzzer/LED and door position detection output ,specially used to normal glass door,wooden door,metal door,fire doors, small doors,the most widely used.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories. Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Specification:
Holding Force280kg (600Lbs)
BuzzerWhen lock abnormal,provide buzzer alarm
Lock Status IndicatorRed and Green, double color LED
Lock Status SensorsNO,NC,COM
Rated Operating Voltage12/24VDC
Current consumption12V/500mA 24V/250mA
Optional FunctionsRelock Delay Timer,Buzzer
Surface finish for magnetZinc plated
Surface finish for armature plateZinc plated
Ambient temperature in °C-10~+55ºC(14-131F)
Suitable forWooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)250Lx48Wx25H(mm)
Armature Plate Dimensions(L x W x D)180L*38W*11H(mm)
Weight in kg2.0kg
CE-mark for buildingYes
Rohs-mark for buildingYes
