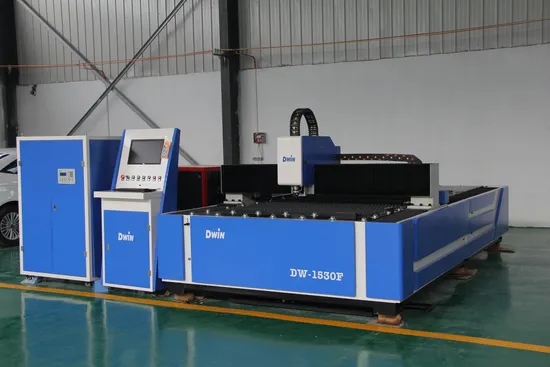

Jinan Factory 5mm Stainless Steel Cutting Machine Price

Product Description

Jinan Factory 5mm stainless steel cutting machine price
Features:
1.Low cost,laser power consumption only 0.5-1.5kw per hour.
2.China best quality laser source,high performance,stability and service lifespan over 100,000hours,free of maintenance.High speed ,high efficiency,thin plate cutting can be over 10 meters per minute.
3.Automatic height sensor on laser head for uneven pieces.
4.Imported ball screw and linear guide rail driving system.
5.Easy and efficient CNC software for fast programming.
6. Our customer has tried on exihibition, the cutting result of the machine is better than some of machine using imported fiber laser source.
Technical Parameter:

Cutting range (length*width)	1500*3000mm	1300*2500mm	according to demands
Fiber laser generator medium	Semiconductor pump continuous ytterbium doped fiber
Max moving speed	100m/min
Max cutting speed	25m/min
Positioning accracy	0.03mm
Repeated positioning accuracy	0.02mm
Cooling type	Water cooling
Laser output power	500W/1000W2000W(option 200W/300W/1500W/3000W)
Min line width	0.1mm
Drive system	Servo motor
Power allocation	380V/220V±10%,50Hz/60Hz
Continuous working time	24 hours
Related weight	Whole machine:approx 4 tons,actul weight based on final configuration(depends on model)
Machine size(l*w*h)	2.4*4.7*1.9m	2.4*5.7*1.9m
Accessories size (l*w*h)(take 500W for example)	Water chiller 1*1*1.2m, control box 1*0.8*1.8m, fiber laser generator 0.5*0.6*0.14m

Application:
Mechanical and Electrical Equipment ,Stainless Steel Products,Construction and Decoration Industries,Billboard ,Sheet Metal Structure,High-low Voltage Electric Cabinet ,Kitchenware.Car Accessories,Saw Bits,Precision Metal Parts,Metal Artware,etc.
Applicable materials:
Stainless Steel Sheet and Hollow Pipe ,Carbon Steel Sheet and Hollow Pipe ,Stianless Iron Sheet and Hollow Pipe ,Galvanized Sheet and Hollow Pipe ,Manganese steel ,Electrolytic plate,Aluminum Alloy ,Titanium Alloy ,Aluminum,Brass,Rare metal,etc.
The thickness of the fiber laser cutting machine cut:

material	Thichness (mm)	500W		1000W		2000W		300W
		max cutting speed m/min	best cutting speed m/min	max cutting speed m/min	best cutting speed m/min	max cutting speed m/min	best cutting speed m/min	best cutting speed m/min
Carbon steel(CO2auxiliary)	0.2	-	-	-	-	-	-	30
	0.4	-	-	-	-	-	-	20
	0.6	-	-	-	-	-		12
	0.8	-	-	-	-	-		5
	1	15	10	24	16	35	22	3
	1.5							1.8
	2	8	6	13	10	22	16	1.3
	2.5	-	-	-	-	-	-	0.9
	3	4	3	8	5	12	8	0.6
	4	2	1.5	4	2.5	7	4	-
	5	1	0.8	3	2	5	3	-
	6	0.8	0.6	2	1.5	3.5	2.5	-
	8	-	-	1.2	1	2	1.6	-
	10	-	-	1	0.8	1.8	1.3	-
	12	-	-	0.8	0.8	1.3	1	-
	16	-	-	-	-	1	0.8	-
	20	-	-	-	-	0.8	0.6	-
Stainless steel(CO2auxiliary)	0.2	-	-		-	-	-	30
	0.4	-	-		-	-	-	18
	0.5	25	20	-	-	-	-	-
	0.6	-			-	-	-	9
	0.8	20	16	-	-	-	-	5
	0.8(tetorial plate)	15	10	-	-	-	-	-
	1	15	10	24	16	35	22	2.2
	1.5	-			-	-	-	1.2
	2	6	4	10	6	16	10	0.5
	3	1.5	1	3	2	9	5	-
	4	-		2	1.5	4.5	3	-
	5	-		1.3	1	3.5	2.5	-
	6	-		-	-	3	2	-
	8	-		-	-	1.2	1	-
Aluminum sheet	0.5	3	2.5	-	-	-	-	-
	1	2.4	2	8	6	13	10	-
	1.5	2	1.5	2.5	2	5.2	4	-
	2	1.3	1	1.5	1	2.6	2	-
	3	0.8	0.6	0.8	0.6	1.3	1	-
	4	-	-	-	-	1	0.8	-
	5	-	-	-	-	0.8	0.6	-
Copper sheet	0.5	2	1.5	3	2.5	5	4	-
	1	1.5	1	2	1.5	3	2.4	-
	2	0.8	0.6	1.5	1	2.5	2	-
	3	-	-	0.7	0.5	1.5	1	-
	4	-	-	-	-	0.8	0.5	-
Galvanized sheet(O2 auxiliary)	0.5	20	16	-	-	-	-	-
	1	15	10	24	16	35	25	-
	2	5	3	8	5	12	8	-
	3	1	0.6	2	1.5	5	3	-
	4	-	-	1.2	1	4	2.5	-
	6	-	-	-	-	3	2	-

Our service
Professional Service From producing in our factory to shipping the goods directly to your port or company,
we supply all-inone service for our customers.With the rich experience of dealing with shipping issue
and custom clearance, we can make the most economical delivery plan for you and ensure the
quick leading time. No matter your quantity is our MOQ or very big, we take each customeras the only
one.

Warranty for the machine
1. Two years quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 12 hours online service each day, free technical support.

---
