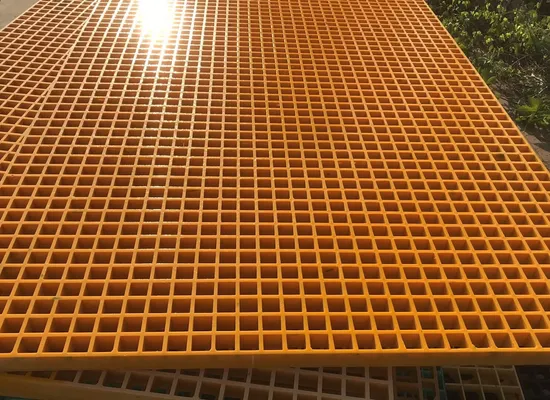

Pigeon Grate 38X38X25mm Fibreglass Sheet FRP Grating Floor Grills for Pigeon Lofts

US$40.00
20-99 Square Meters
US$35.00
100-499 Square Meters
US$33.00
500-999 Square Meters
US$29.00
1,000-9,999 Square Meters
US$25.00
10,000+ Square Meters

Basic Info.

Model NO.
38*38*25mm
Thickness
38mm
Usage
Industral, Household
Product Categories
FRP Grating
Molding Method
Molding
Material
FRP
Fiber Type
GFRP
Type
Polyester FRP
Product Name
FRP Grating
Raw Material
Fiberglass
Function
Walkway Roof
Feature
Anti Slip
Application
Industry
Warranty
2 Years
Technical
Molded
Transport Package
Pallet, Box
Specification
1-1000M3
Trademark
NK
Origin
China
HS Code
3926909090
Production Capacity
500000 M3

Product Description

Product Description Frp grating is a kind of glass fiber reinforced material, unaturated polyester resin as matrix, through special processing and become a kind of plate material, with lots of blank space. FRP gratings can be used as a structural material, were used as corossion envionment of floor trench cover platform shipsdeck stair plank road with corossion such as flame retrdant No, magnetic insulation. There are many colorful sample alternative style form,etc Specification of fiberglass grating
Specifications(mm) a*b(mm) weight(kg)
38*38*25 1220*3660 54
38*38*30 1220*3660 70
38*38*38 1220*3660 1000*4007 88 81
50*50*50 1220*3660 98
19*19*38*38*30 1075*3626 72
38*38*65 1030*4040 141
40*40*40 1010*4040 81
19*19*38*38*38 1220*3660 92
25*25*50*50*30 1220*3660 62
FRP Grating Clips Installation- where possible, provide for a minimum of 40mm of bearing support at all grating sup- port points. Hold down clips should be used at the rate of one clips for every 0.5m 2 of grating mini- mum, or at least 4 clips for any square or rectangular piece, or at least 3 for triangle piece.The following are our grating clips types Feature 1>High Strength,Anti aging and Security It contains strong stress resistance,Lightweight,high strength and easy to cut and install. Excellent electrical insulation, no breakdown at 10 KV voltage;No electromagnetism, which can be used on magnetic sensitive equipment;The special structure of GRP grille also has anti-sliding and anti-fatigue properties. 2>Crossion Resistance It has excellent crossion resistance to acid,alkali,organic solvent,salt and many other gas-liquid media 3>The Size and Color The Color can be selected arbitrarily according to the customer's requirement. Flexible in size,convenient in cutting and stable in size. 4>Inflaming Retarding The flame propagation rate of ordinary flame retardant grating does not exceed 25 Application * Flooring* Bridges* Ramps* Walkways* Platforms* Assembly lines* Wash bays
Packaging Our Company Hengshui Nuokon is located in Hebei Province in the north of China. Relying on its unique talent advantages and technical support, it focuses on the production and sales of cooling tower fillers, cooling tower accessories, septic tanks, water tanks, water treatment and outdoor protection safety products.
Nuokon always supply best quality and excellent service to meet your all requirements, hope to establish good and long time cooperation with much joy with you! Any inquiry will be answered in the first time.
