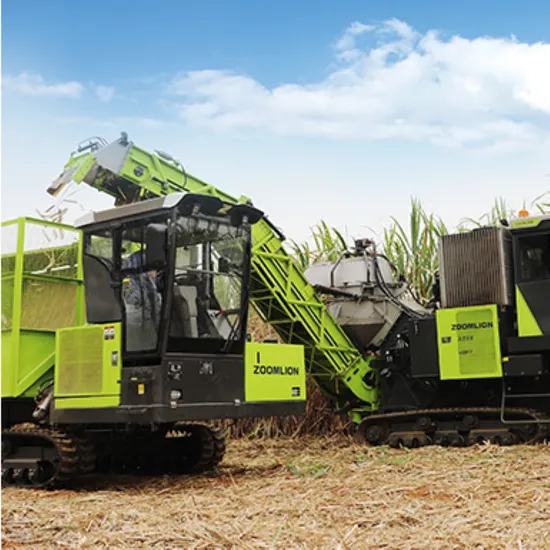

China AC60 Sugar Cane Harvester for Sale

Product Description

Product Name: China AC60 Sugar Cane Harvester For Sale

Product Description
AC60 sugar cane harvester adopts wheeled walking, light steering and turn-back operation, fast transition speed , and it is more adaptable to small piece land . It is equipped with a four-wheel independent suspension system chassis, which realizes independent lifting of the four wheels, and has strong adaptability to the depression and slope.

Fully floating four-wheel independent suspension walking system.
Adopt multi - point coplanar, electronic control hydraulic adjustment of the cylinder lifting four wheel height.
Four wheels real-time shape, so that the machine can walk smoothly in the ridge and furrow.

Equipping tip cutting device which is lower the impurity ratio.
Stationary cutter added at two side of ridge supporter to effective solve the problem of vine winded and reduce feeding pressure.
Equipping with Yuchai high pressure common rail engine which is stronger power ,lower oil consumption and reliable performance.
The convey channel adopts independent floating channel changing device, it will automatically alarming and sorting in case blocked .

Rotate speed ratio of sorting fan is adjustable with good performance of sorting
Adopting rise and fall unloading device which is capable of unload sugarcane to the carriage directly.
The machine adopts Beidou navigation integration acre measure control system with high precision and efficiency
All system adopting software control with intelligent fault diagnosed
Adopting load-sensitive hydraulic system with auto-control flow distribution to meet dynamic load request and energy saving and reliable.

Hydraulic system heat dissipation independently with control rotate speed of fan and energy saving and lower noise
All electric parts are using Europe and America importing brand. The connectors enjoys reliable quality with waterproof,dustproof and anti-loose
The operation system controlled by CAN bus with easy wiring and reliable information sharing
The sensor control technology which is capable of monitoring machine working state.
The machine walking adopting one-button operation, the diversion controlled by imported steering wheel with comfortable operation.
The great view cab with Gramer seat and imported special AC to have comfortable driving.

Parameter

Model			Unit	AC60
Structural type			/	Self-walking wheel
Engine	Type		/	YC4A175-T300
	Rated power		kW	129/2200
Dimensions(L*W*H)			mm	Max 12500×6200×6000 Min 8000×2500×3650
Weight			kg	8400
Front wheel tread			mm	1660
Rear wheel tread			mm	1510
Adaptive ridge spacing			mm	≥1200
Adaptive ridge height			mm	0~200
Adaptive slope			°	≤20
Ground speed			km/h	0~16
Feeding capacity			kg/s	≥6
Pure hourly productivity			t/h	≥12.5
Total loss rate			%	≤7
dirt percentage			%	≤8
Qualified rate of sugarcane section			%	≥90
Ground clearance			mm	275
Tank capacity		Fuel	L	288
		Hydraulic oil	L	180

---
