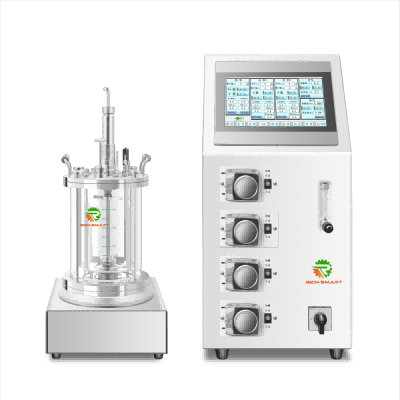

Benchtop Glass bioreactor with best factory price
The Parallel microbial glass bioreactors are specially prepared for laboratory microbial experiments and such purposes, they're going to be of great assistance to you.
Features of Controlling System
1.High transparency glass for easy observation and monitoring of the experimental process.
2.Well-designed structure for easy maintenance and cleaning.
3.Available in various specifications and configurations to meet different experimental requirements.
Whether you are conducting microbial cultivation, biopharmaceutical engineering, enzyme reactions, or other biological experiments, our parallel bioreactor provides a stable experimental environment and reliable data support.
Quality and reliability have always been our top priorities in our products. We also offer customization services to design and manufacture flat plate bioreactor according to specific customer requirements.
parallel bioreactor flat panel bioreactor
Whether you are in academic research, biotechnology enterprise, or pharmaceutical industry, we are willing to be your trustworthy partner. Choose our flat panel bioreactor to help achieve outstanding achievements in your scientific experiments.
Multiple Control Function
1.Associated control: temperature, stirring speed, pH, dissolved oxygen, defoaming, airflow, tank pressure, feed amount and other direct parameters.
2.Remote monitoring: Suitable for smartphones, tablets, laptops and PC for instant remote monitoring.
3.Step control: Users can switch directly between manual control and step control and set at least 10-step control program for temperature, agitation, PH, DO and feeding.
Smart PID control
1.Temperature, stirring speed, Ph, DO and other parameters in the tank can be controlled by subsection curve setting 2.according to the process requirements.
3.Temperature Control: Adopt PID automatic control mode; SS316L jacket base for electric heating and cold water for cooling.
4.Dissolved oxygen control: equipped with DO electrode and shielded conductor, DO is associated with stirring motor speed, feeding, airflow, tank pressure and other parameters.
5.PH value control: Intelligent PID system control built-in control peristaltic pumps for acid-alkali adjustment, with high control precision.
6.Antifoam control: Foams are automatically detected and the peristaltic pump is controlled to add defoamer in proportion to time.
7.Feeding control: Peristaltic pump switch control (manual, automatic, and off); accumulation volume control; coupled with other parameters (DO, pH, etc).
Standard Glass Vessel
Equipped with an easy-to detach condenser around the air outlet, for easy cleaning, no effusion and no contaminating bacteria.
Standard sensors port for precise measurement and control of temperature, pH, DO, Antifoam, feed, aeration and pressure.
Magnetic drive stirring for good sealing performance.
Compact design for saving critical laboratory space..
Standard with flat or pitched-blade; other types of impellers are available
Configured one sampling port.
Equipped with a filter to prevent contaminated air from getting to the system.
Tempered high borosilicate glass 3.3 for vessel and SS316L for the heating plate.
Perfectly suited for research and development, available in 1L, 2L, 3L, 5L, 7L, 10L and 15L.
Upgrading option list
Gas mixing options: Air/O2/CO2/N2
Cleanliness detection
Online live cell detectio
Automatic vessel pressure control
Top areation
Thermal mass flow controller
CO2 detection
Redox
Exhaust detection analysis
Liquid level
Filling weighing system
Methanol and ethanol content online detection
Additional feed pump
Variable speed pump
Upper controller
Magnetic drive
Customizable blade
Vessel passivation
Custom port
Cover lifting
Standard Type Specifications

Model	RS-BG-X3	RS-BG-X4
Controller	One console for three vessels	One console for four vessels
Display / Operation	Touch panel 10" / Touch screen	Touch panel 10" / Touch screen
USB	3 x RS485	4 x RS485
Vessel	1L / 2L / 3L / 5L / 7L / 10L/ 15L	2 x 1L / 2L / 3L / 5L / 7L / 10L / 15L
Working volume	0.8L / 2L / 2.6L / 4.4L / 6L / 8.4L / 14L	2 x 0.8L / 2L / 2.6L / 4.4L/ 6L/8.4L/14L
Stirring speed	5 - 1000 rpm	5 - 1000 rpm
Motor power (Kw)	0.18/0.4/0.4/0.4/0.4/0.75	0.18/0.4/0.4/0.4/0.4/0.75
Pressure	0.10Mpa (Max 0.15Mpa)	0.10Mpa (Max 0.15Mpa)
Material	SS316L & 3.3 high borosilicate glass	SS316L & 3.3 high borosilicate glass
Serilization	Autoclave	Autoclave
Gas inlet	2 deep gas inlets (Air, O2)	1 overlay with 4 gas inlets
Feeding pumps	12 peristaltic pumps	16 peristaltic pumps
Peristic pump tube ID	0.5 mm	0.8 mm
Peristic pump flow rare	0.06/revolution	0.15/revolution
Sensors	PT100, DO, foam, pH	PT100, DO, foam, pH
Temperature	Eletrical heating sleeve with bottom water to control heating / cooling	Eletrical heating sleeve with bottom water to control heating / cooling
pH control	Range: 2 - 12（±0.01)，display: 0 - 14（±0.01)	Range: 2 - 12（±0.01)，display: 0 - 14（±0.01)
DO control	Range: 0 - 150% (±3%), international eletrode and shielded wire detection	Range: 0 - 150% (±3%), international eletrode and shielded wire detection
Defoam control	Automatic foam detection, automatically add defoamer in proportion to time	Automatic foam detection, automatically add defoamer in proportion to time
Agitation control	Servo motor, PID control, stepless speed regulation	Servo motor, PID control, stepless speed regulation
Areation airflow	2VVM	2VVM
Areation filter	0.2μm	0.2μm
Areation flowmeter	Air calibrated, 1.2bar 20℃	Air calibrated, 1.2bar 20℃
Areation flow rate	0.5SLPM, 1.0SLPM, 2.5SLPM, 5.0SLPM, 10SLPM, 25SLPM (customizable)	0.5SLPM, 1.0SLPM, 2.5SLPM, 5.0SLPM, 10SLPM, 25SLPM (customizable)
Application	Biology, Biopharmaceutical, biotechnology Research, Bioengineering, Life Sciences, Cell and gene therapies,Antibodies, Vaccine, Bacteria, Enzyme, Fungi, Blood, Microbiology, etc

---
