Portable B/W Ultrasound Scanner with Clear Image Quality

Product Description

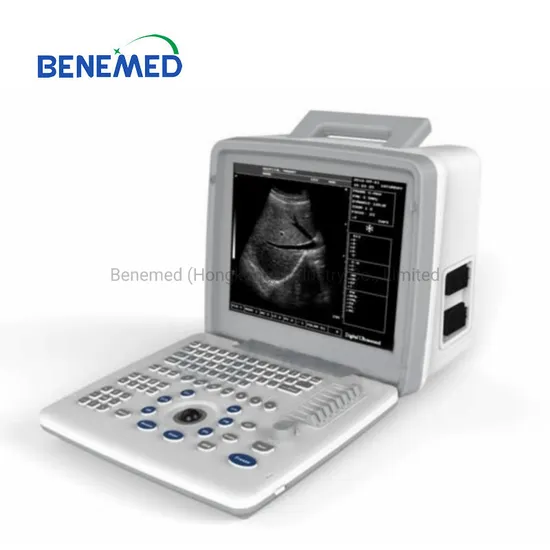

BENEMED BW-5 Portable Ultrasound Diagnostic Scanner
Feature:
•Digital Beam Forming
•Superior image quality
•Dynamic Receiving Apodization
•Dynamic Frequency Scan
•Advanced imaging processing
•USB port for convenient image transfer
Specification
General Description:
Imaging Modes: B, B/B, B/M, 4B, M
Scanning Modes: Convex, Linear
Gray Scale: 256
Display: 12'' LED monitor
Gain: up to 120dB
Scanning dept: up to 250mm
Imaging technology: Digital Beam-forming
Dynamic Frequency Scan
Dynamic Receiving Focusing
Dynamic Receiving Apodization
Real-time Dynamic Aperture
Imaging Processing
Pre-processing: 8-segment TGC adjustment
Dynamic range
Frame correlation
Edge enhance
Post-processing: Gray scale
Polarity reverse
Left/Right reverse
Up/down reverse
Functions:
ZOOM: Local zoom
Panoramic zoom
Image memory: 128 frames
Cine Loop: 256 frames
View: Patient info, patient image, Patient report
Pseudo color: 16 colors selectable
Software Functions
General measurement: distance, circumference, area, volume, angle, ration, etc
Calculation package: abdomen, cardiac, gynecology, obstetrica, urology, orthopedics, small parts, etc
Obstetric measurement: BPD, CRL, GS, FL, HC, AC, EDD, AFI, FW
Comments: Week, day, time, doctor time, patient ID, age, sex, transducer type, transducer frequency, gray scale

Peripheral ports:
USB SVGA PAL-D Video output
Others:
Net weight: 6.0KG
Power supply: AC 220V±22V 50Hz
Dimensions: 480*380*410
Standard Configurations:
BW-5 main unit
12'' LED monitor
Two transducer connectors
256 frames cine loop
Electronic convex transducer
Options:
Electronic linear transducer
Electronic endocavity transducer
High frquency rectal linear transducer
Mobile trolly
Thermal printer

---
