Benchtop CNC Lathe

Product Details

Product Details

Product Description

Product Description

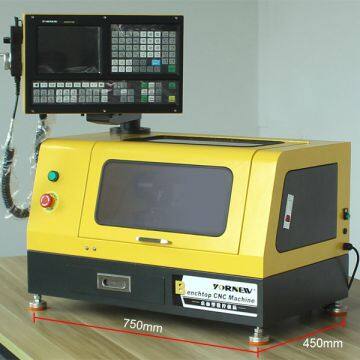

Product No: CK140Product Name: Benchtop CNC Lathe
Features
(1).Automatic 4 positions tool post.
(2).KY 980Tc Turning CNC System,Optional siemens 808D or Mach3
(3). ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function.
(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(5). The standard spec includes MPG hand wheel.
(6). USB and RS232 port, DNC function of USB.
(7). Control speed of G code.
(8). Selection of high -quality casting materials,more compact.
(9). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(10). 220VAC or 110VAC single-phase AC power supply.
(11). Safety electrical components of high quality.
(12). Auto power off when door open.
(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters
Turning diameter over bed(max)140mm
Travel across slide75mm
Chuck diameter80mm
Spindle speed100-2000r/min(control speed of G code)
Spindle through-hole11mm
Spindle mountMT2
Spindle motor power150W
X travel70mm
Z travel160mm
The max moving speed2000mm/min
The max feeding speed1000mm/min
Control systemKY 980Tc Turning CNC System
InstructionDXF+G code template function, converting DXF automatically to G code for processin
Tool position4
Tool dimension8×8mm
Tailstock taperMT1
Tailstock sleeve diameter20mm
Travel of tailstock25mm
Positioning accuracy0.02mm
Repeatability accuracy0.02mm
Power220VAC / 110VAC
Weight(NW/GW)50/65KG
Overall dimension750*450*450mm
Packing size850*470*470mm
