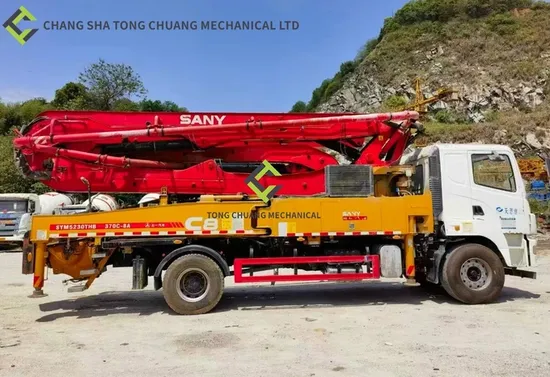

High-Performance Sym5230thb 370c-8A C8 Series Concrete Pump Truck

Product Description

Product Parameters

Technical parameters of SYM5230THB 370C-8A C8 series 37 meter concrete pump truck
Vehicle parameters			Total length			10050mm
			OveOverall width			2530mm
			Total height			3850mm
			Total weight			23000kg
Arm support leg parameters			Vertical height of boom			36.5m
			Horizontal length of boom			31.8m
			Vertical depth of boom			24.8m
			Unfold height			7.5m
			Turntable rotation angle			±360°
			Front leg deployment width			6110mm
			Rear leg deployment width			8500mm
Pumping system parameters			Concrete displacement - low pressure			100m ³/ h
			Concrete displacement - high pressure			60m ³/ h
			Theoretical pumping pressure - low pressure			8Mpa
			Theoretical pumping pressure - high pressure			13Mpa
			Inner diameter of conveying cylinder			230mm
			Transport cylinder stroke			1600mm
			Hydraulic system			open
			System oil pressure			32Mpa
			Fuel tank capacity			320L
			Water tank capacity			360L
			Conveying pipe diameter			125mm
			End hose length			3m
			End hose diameter			125mm
Chassis parameters			Chassis brand
			Chassis Model			SYM5230THB1E
			Engine model			J08E-WY
			Engine net power			194/2200kW/rpm
			Emission standard			National V
			Fuel tank capacity			300L
			Displacement			7.684L
			Maximum speed			85km/h
			Braking distance			≤8.5/30m/km/h

Detailed Photos
Company Profile
FAQ
1. who are we?We are based in Hunan, China, start from 2022,sell to Africa(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),Mid East(20.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?concrete pump truck,concrete mixer truck,truck crane,dump truck4. why should you buy from us not from other suppliers?In the second-hand construction machinery industry for more than ten years. Specialize in providing all kinds of construction machinery and equipment in original condition, including new and original second hand equipment.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,DAFAccepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese,Spanish,Arabic,French,Russian

---
