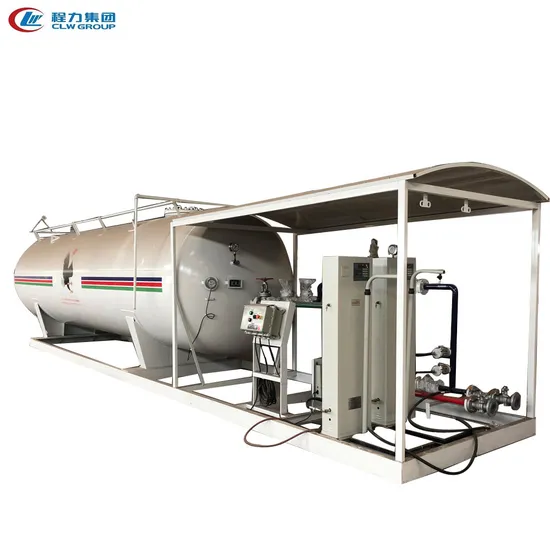

LPG Skid Station Mobile Cylinder Filling Station 5cbm LPG Gas Filling Plant

Product Description

5000 10000 20000 Liters LPG Skid Station Mobile Cylinder Filling Gas Station 5cbm LPG Gas Filling Plant for Sale Product Description
LPG skid filling station Features:
> LPG storage tank with capacity of 5cbm up to 120cbm
> Color : as customer's requirement
> LPG Filling pump with motor
> LPG discharging pump with motor
> Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
> Other valves and necessary accessories for the operation of lpg filling station
Product Parameters
The parameters of 20m3 LPG tank is just for your reference, we can do customized products as requirements.

10ton (20 CBM) LPG TANK DIMENSIONS
Volume of Tank		20 CBM
Filling Weight		7980 kg
Tank Weight		5050 kg
Thickness of Shell (mm)		12 mm
Thickness of Endplate (mm)		12 mm
Tank Diameter (mm)		2100 mm
External Dimensions (mm) (length x width x height)		6154*2124*2714 mm
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50		1
Inflow Pipe	DN50		1
Outlet	DN50		1
Gas phase balance pipes	DN50		2
Manhole	DN450		1
Drain Hole	DN50		1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

20 cbm LPG station Part list
Item			Model Number			Quantity
LPG Tank			20 cbm (10 tons)			1 piece
LPG Filling Pump			2" inlet & 2" outlet			1 Piece
China Motor			380V with 220V adapter			1 Piece
LPG Filling scale			3-150 kg cylinders			1 Piece
Cut-off Valve			J41N-40 DN50			25 Pieces
			J41N-40 DN15			10 Pieces
Safety Valve			A42F-25 DN50			1 Piece
Pipe Safety Valve			A21F-25 DN15			1 Piece
Ball floating level gauge			UQZ-2.5P			1 Piece
Discharging pipe			L=4M DN50/DN25			1 Piece
Shock-absorbing Tube			L=500mm DN50			2 Pieces
Flange			2.5MPaDN15			20 Pieces
LPG Pump & Motor Specification
	Pump Brand			China local famous brand
	Model			YQB15-5
	Medium			Liquid petroleum gas
	Material			Nodular Cast Iron
	Liquid Delivery Value			5.2m³/h~15m³/h
	Inlet & Outlet Flange			2"NPT / 2" NPT
	Motor Brand			China local famous brand
	Specification			7.5-10HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable

Detailed Photos

Production Process
Company Profile
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
Our advantage:
1. More than 15 years' experience as a manufacturer
2. Competitive Price and Excellent Quality
3. CCC, ISO, BV, ASME certification
4. Perfect after-sale service
5. Trucks covering more than 50 countries and regions
6. 300 kinds of trucks and trailers
7. Annual production value topped 240,000,000 US dollars per year
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / dump semi trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Packaging & Shipping
Naked or waxed . Delivery time:30 days after official order. By RORO or Bulk ship.
FAQ
Q:What is your payment term?
A:We accept payment by T/T,L/C.
Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets
Q:Is your factory a manufacturer or trading company?
A:We are the manufacturer , we are the biggest special trucks factory in china special truck base.
Q:Where is your factory located,can we visit your factory?
A:Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!
