Movable 200L Stainless Steel SUS304 Single Layer Sanitary Grade Emulsifying Mixing Tank

Product Description

Product Description

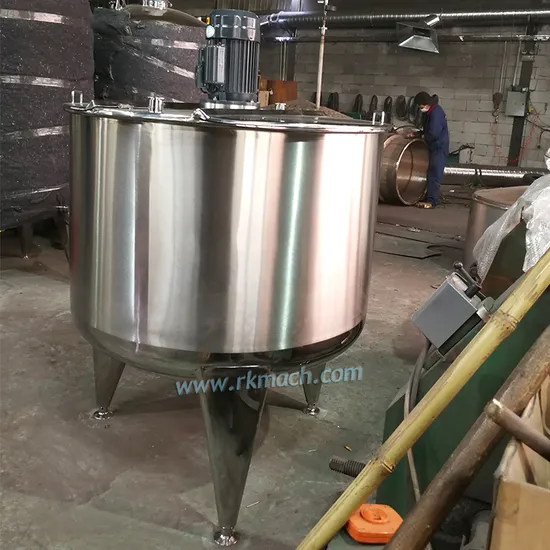

Overview Sanitary grade stainless steel sus304 200L homogenizing tank (non-jacketed)
Inner structure

This tank is made by stainless steel 304. With a hinged cover on tank top, top mount high shear homogenizer. No heating function included in this tank. No heating jacket or insulation wall included.
Product Parameters

S.N.	Item	Description
1	Working Capacity	200 Liter	300L
2	Full capacity	270 Liter	330L
3	Working pressure	Room pressure	Room pressure
4	Design temperature	100 Degree c	100 Degree c
5	Contact Material	SS304	SS304
6	Homogenizer	4kw 2 Polos, 2850rpm	5.5kw 2 Polos, 2850rpm
		SS304 rotor and stator	SS304 rotor and stator
		650mm long shaft (L=650)	750mm long shaft (L=750)
7	Voltage	380V 50Hz 3Phase	380V 50Hz 3Phase
8	Dimension	Φ700×600 3mm thickness	Φ700×750 3mm thickness
9	Overall size	Φ700×1550mm	Φ700×1700mm
10	Packing size	800x800x1700mm	800x800x1850mm
11	Gross weight	150kg	180kg
12	Inlet port	2 Nos, Φ32, clamp	2 Nos, Φ32, clamp
13	Drainage port	1 Nos, Φ32, clamp	1 Nos, Φ32, clamp
14	Cleaning port	1 Nos, Φ32, clamp	1 Nos, Φ32, clamp
15	Polish	Inner mirror polish, outer mate	Inner mirror polish, outer mate

Related products
11kw inline homogenizing mixer / emuslifying pump (3 stage inline homogenizer)
low speed and high speed mixing tanks / dispersing tanks / jacketed mixer for syrup
ow speed mixing tanks with water / steam jacket homogenizing tank for juice and beverage
dual motion mixing tanks
batch type homogenizers high shear mixers for stainelsss teel tanks and vessels
variable speed dispersing mixers for ink, pait and coating
Workshop
Please contact us for customized tanks and vessels with / without mixing devices.

---
