China Tony Factory Price Efficient and Environmental Ring Die Pellet Machine

Product Description

China Tony Factory Price Efficient and Environmental Ring Die Pellet Machine
TONY--- Professional Manufacturer of Pellet Machines
Brief Intro: Owns a professional team in researching, designing, manufacturing, trading, installing instructing and serving on pelleting equipments.
"TONY" machines with good reputation have been exported to lots of Europe, South America, Southeast Asia countries, and set agents in Brasil ,Canada, Germany, America, South Africa, Australia, India,Vetnam, Malaysia and so on countries.
Product Presentation

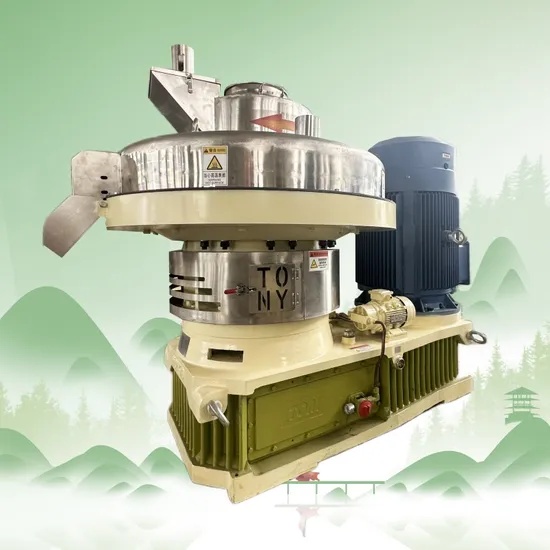

TONY wood biomass pellet machine is a new biomass fuel production machinery by using crushed sawdust . Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die Pellet Mill Machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die wood.
Raw material requirement

Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material
Size:≤14mm (All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet.
Product Details
Machine Parameter

Model	Power(KW)	Capacity(T/H)	Size(MM)	Weight(T)
TYJ551-II	90-110	1.5-2	2100*1300*2000	5.5
TYJ551-III	132	2-2.5	2250*1400*2150	5.9
TYJ760-III	160	2.5-3	2500*1600*2400	8.5
TYJ860-III	220	3-4	2700*1700*2500	13.5

Machine Characteristics
1.Vertical hopper: This design can avoid the raw material be stuck in granulating room.
2.Cooling system: As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Double-layer dies: This design increase the efficiency of pellet making,reduce clients cost.
4.Bearing: High precision, high speed, low noise, long life
5.Unique automatic lubricating system: Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energy consumption.It can work continuous 24 hours.

How to design Wood log pellet line?

Wood log is the most common raw material for making wood pellets.
So, how to design a suitable wood pellet production line with wood log as raw material?
First, a drum wood chipper is used to chip wood log into small size wood chips with 2.5-3.5cm.
After that, hammer mill/wood crusher is used to grind wood chips into sawdust (6-12mm).
Sometimes, a dryer is need ,as usually the MC of wood log is always about 30-50%,Under this condition, a dryer is need.
Then, a vertical ring die wood pellet mill machine is used to press dried, wood sawdust into good quality wood pellets.
Tony's pellet machine advantages
Working Principle
TONY Case

Certificates and Patents

Exhibitions and Customer Visits

Factory Display
The advantages of buying equipments in our company are: 1. a full range of design, construction, equipment supply, construction, installation supervision and commissioning, staff training;
2. license for the design, construction, installation, wiring, and other works;
3. full certification of equipment;
4. officially registered trade mark;
5. full warranty, post warranty and service;
6. warranty on all equipment - 13 months;
7.Quality is directly proportional to price8. vast project experience. we have established and put into operation so many of pellet plant productivity on the finished product from 0.5 to 20 t / h in Malaysia, Thailand, Vietnam, Germany, France, Bulgaria, Serbia, Romania, Korea, Australia etc;
9. large stock of finished equipment and spare parts;
10. all equipment of our production, equipped with electric motors and gearboxes, that made in big company

---
