Glazing Robot Vacuum Lifter for Glass/Metals/Building Panels and Other Lifting Challenges

Product Description

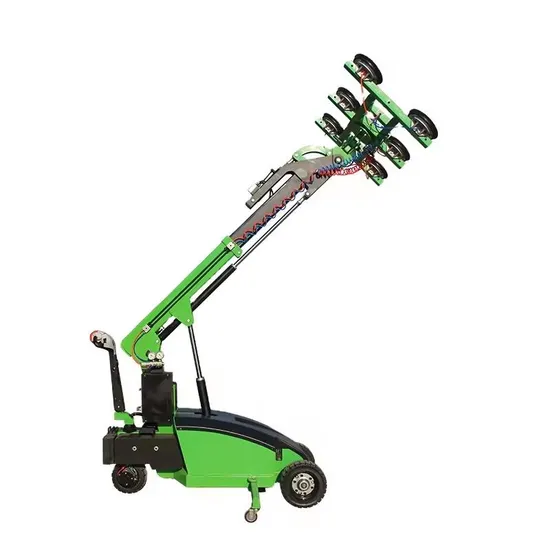

Glass Handling Machine
Glass Installation manipulator for Different Sizes of Glass
TOYOCC designs the Smart Flat Glass Handling Systems with the various amount of glass suction cups and one axis manipulator and a vacuum system to handle any size of glass with no damage on the surface.
This machine is ideal for transport the delicate glass within company premises and on construction sites.
Specifications:

Electric Robot	Unit	Detailed info
Rated load capacity	kg	300	350	400	500	600
Manual rotating	deg	360	360	360	360	360
lifting height	mm	3500	3500	3500	3500	3500
Manipulation	/	Walkie Type	Walkie Type	Walkie Type	Walkie Type	Walkie Type
Battery	V/A	2x12/80	2x12/90	2x12/100	2x12/120	2x12/120
Charger	V/A	24/12	24/12	24/15	24/18	24/18
Drive motor	V/W	24/1200	24/1200	24/1200	24/1500	24/1500
Lift motor	V/W	24/2000	24/2000	24/2000	24/2200	24/2200
Overall Width	mm	810	810	810	810	810
Overall Length	mm	2660	2660	2660	2800	2800
Driving wheel dimension	mm	250*80	250*80	250*80	300*100	300*100
Suckers diameter	mm	300	300	300	300	300
The glass size	mm	3660*2440	3660*2440	3660*2440	3660*2440	3660*2440

Why is it more competitive?
One multi-purpose machine can lift not only glass but also metal, building panels, granite. Lightweight and extremely easy to operate Used Q345 manganese steel material, square tube welding, safe and reliable. Double system control, one vacuum system for working, and the other one for standby application; Adopt American THOMAS vacuum pump, Italy METALROTA heavy type driving wheels, Swiss BUCHER hydraulic power unit, and digital maintenance-free battery, it can walk freely without air source or power supply. With 360 degrees rotation and 90 degrees turnover manually, allowing the operator to pick the flat glass accurately and gently. With Japanese PANASONIC digital display vacuum pressure switch and battery meter, clearly monitor the safe operation of the equipment. Equipped with a 12V backup battery. If the battery is dead during operation, it can be replaced in time to ensure the progress of the project. An auto vacuum filling system ensures the whole vacuum system maintains a relatively constant safe pressure, provide the uninterrupted operation with predictive maintenance. Structural components can be quickly installed. with the adjustable design, you can change the position of each suction cups, each suction cup with a separate control valve can hold different sizes of glass.
Detailed Pics:
Dimension Drawing:
Quality Control
Who are we?
Qingdao TOYO Industry Co. Ltd. is a jointly funded venture by two industry-leading equipment companies supplying to the industry globally. Our parent companies have more than 20 years of experience in manufacturing, including long-term international foundry production.
We have outstanding production capacity, R&D and, above all, international standard quality control. Our factories have been granted TS16949, ISO9001 international quality system certification, Germany CE certification and ISO14001, T28001 management system certification.
The factories own world-class production line and imported moulds, and have introduced numerous patented products to the international market. Our factories cover over 128,000 square meters, staffed by over 500 technical staff, in addition to 60 expert R&D engineers.
Supported by our parent companies' superb manufacturing ability, Qingdao Toyo Industry Co., Ltd is dedicated to expanding its international cooperation and promoting the concept of manufactured in China and the created in China.
At the same time, we provide quality products and services for factories, traders and direct users across the globe.
Why Trust Us?
All these certificates just mean we are always improving..
Other Related Products:
Electrical Vacuum Lifter
Pneumatic Vacuum Lifter
We offer speedy, efficient and high-quality glass handling systems which are capable of dealing with a variety of lifting challenges, including different sizes of flat glass, metal, building panels, granite and so forth.

23 Years' Experiences
99.6% Customer Satisfaction
2 Years Warranty
Always On-Line After-sale Customer Support
A Better Machine to Empower You!
Welcome to inquire about more products!
Any further quesitions, contact me to get more supports!

---
