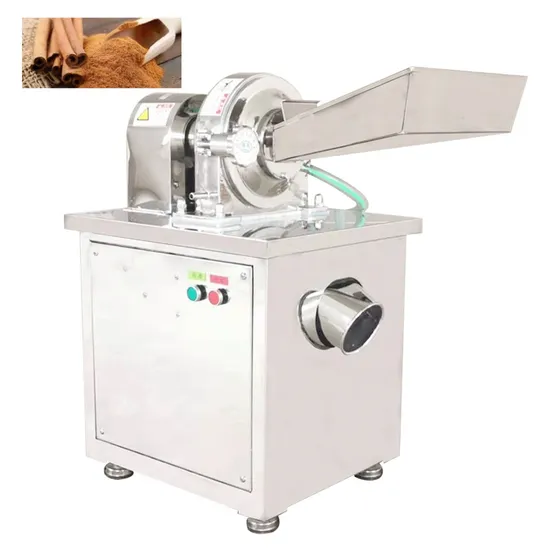

Stainless Steel Water-Cooled Hammer Crusher Spice Powder Grinding Machine

Product Description

Product Description Stainless steel water-cooled hammer grinding machineThe water-cooled all-around crusher utilizes the motion of the hammer to make the crushed material collide, strike, cut, and rub at high speed inside the crushing chamber, as well as the collision and friction between materials, in order to obtain crushing. The crushed material falls into the aggregate bucket or cloth bag below the crushing chamber through the sieve. Generally, materials are packed in cloth bags, with dust remaining inside while air and a small amount of extremely fine dust pass through the cloth bags.The water cooling cycle involves artificially setting dense cavities in the outer ring of the crushing chamber, as well as the door cover and rear wall of the crushing chamber. Cold water is injected and flows through the crushing chamber, front door cover chamber, and rear chamber before being discharged from the chamber, thereby achieving the goal of cooling the entire crushing machine head and reducing the temperature of the crushing chamber.This machine is suitable for powder: Sichuan pepper, star anise, cumin, cinnamon, chili, monosodium glutamate, salt, white sugar, white sugar, chicken essence, citric acid, glass, chemical raw materials, seasoning mixtures, powder metallurgy, grains, urea, seasoning liquid sauces, soaked and drained rice, new fresh chili sauce, fresh corn, Douban sauce, puffed food, and so on. The whole machine is made of stainless steel material, and the contact material is 304 stainless steel.Product Parameters

Product name	Stainless steel water-cooled hammer grinding machine
Model	XD-MF200
Voltage	110V 60Hz,220V 50Hz ,380V 50Hz three-phase electricity
Power	3(kW)
Spindle speed	5200 (r/min)
Sieve fineness	10-120 (mesh)
Production	50-100 (kg/h)
Material	304SUS
External dimensions	51*45*90 (cm)
Weight	100 (kg)
Packaging	Closed wooden box
Crushing chamber outer diameter	250MM
